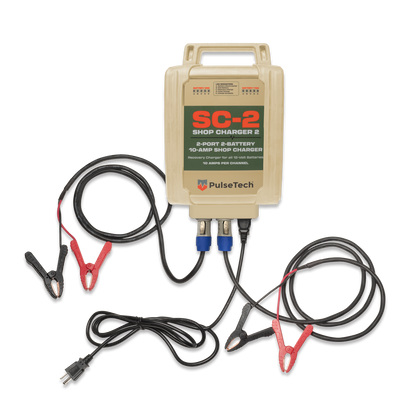

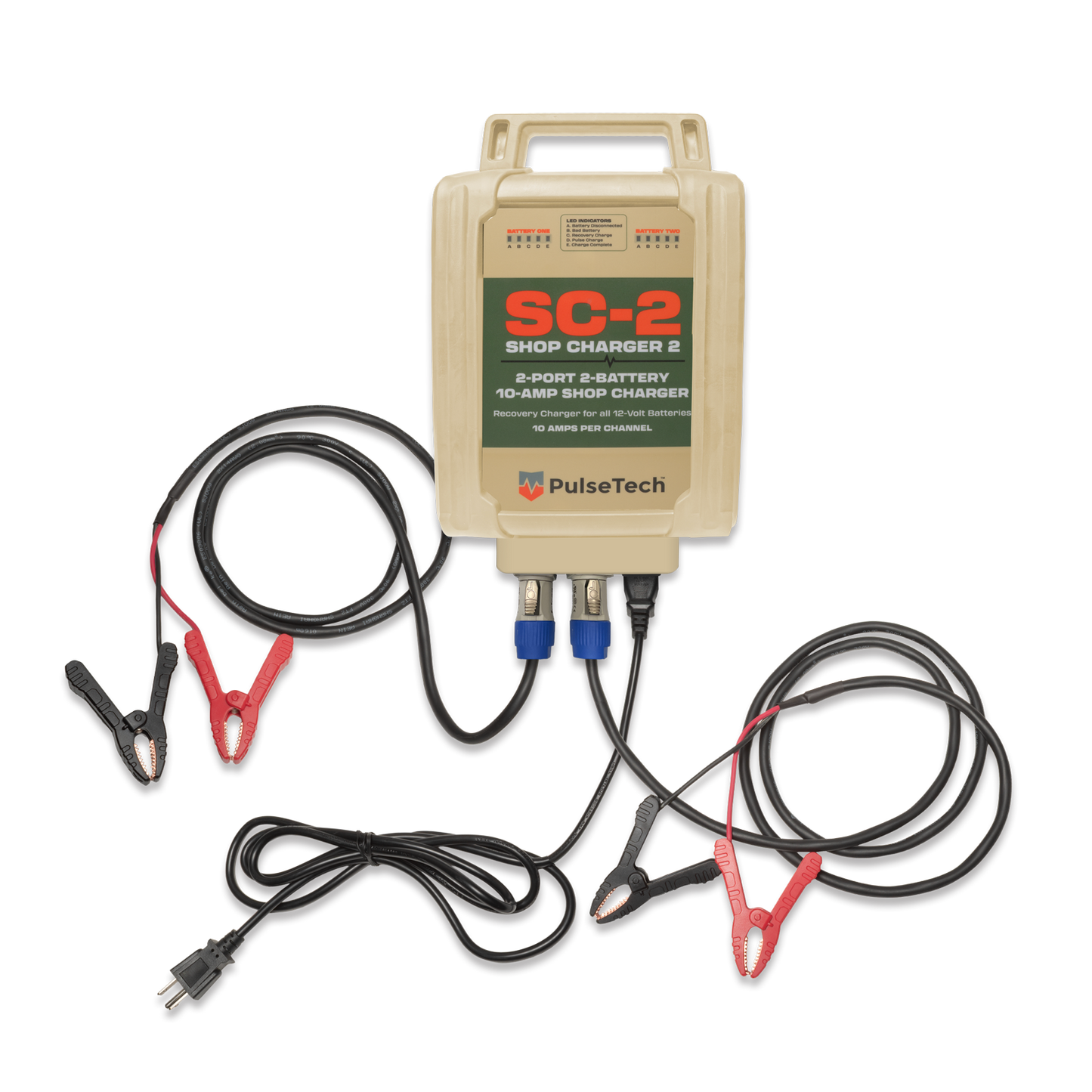

2-Station Charger (SC-2)
2-Station Charger (SC-2)
Part #: 746X814
NSN: 6130-01-689-4211
Multi-Use: Recovers, charges, maintains, and desulfates as many as two 12V lead-acid batteries (VRLA, AGM, gel, and flooded cell) anywhere in the world.
Independent Charging Stations: Both of the two charging stations operate in isolation from one another, allowing different battery brands to be recharged safely at the same time. LED indicators show the status of each battery making the SC-2 easy to understand. Each battery receives a charge (variable up to 6A) along with our patented waveform that removes sulfates and extends battery life.
• Patented Pulse Technology removes sulfate crystals and extends battery life
• 5 LED indicators per cable connection
• Reverse polarity protected
• Spark free operation
• Works anywhere in the world with detachable IEC connector
• Single switch operation
• One-Year Limited Warranty
Model Name: SC-2 2-Station HD Battery Recovery Charger
Model Number: SC-2
Part Number: 746X814
NSN: 6130-01-689-4211
Electrical Characteristics
Input Electrical
Input Voltage: 110 - 240 VAC
Input Current: 2.5 Amps Max at 100 VAC (All outputs @6 Amps)
Input Frequency: 50 - 60 Hz
Min. Voltage for Startup: 4 Volts
Output Electrical
Output Current: 6 Amps per Channel, 12 Amps Max
Output Voltage, Bulk Charge: 14.8 Volts
Mechanical/Physical Characteristics
Dimensions: 14.5'' x 11.75'' x 6.25''
Weight: 10 lbs.
Shipping Weight: 12 lbs.
Enclosure: Black HPX Plastic
Battery Cable Length: 9'' - 14 AWB from box to battery clamps
Environmental
Operating Temperature: 0°F to 130°F (-18°C to 54°C)
Storage Temperature: 0°F to 150°F (-18°C to 66°C)
Indicators
Battery Disconnected
Bad Battery
Recovery Charge
Pulse Charge
Charge Complete
Reverse Polarity
Temperature Shutdown
Warranty
One-Year Limited Warranty
HOW WE 3X BATTERY LIFE
The secret to our success is our patented pulse waveform, which removes and prevents the buildup of lead-sulfate deposits on battery plates. That primes the battery to accept and store maximum power.
Long trusted by the military, our tech is ideal for anyone who wants to get more out of their equipment. Whether you're looking for a car battery maintainer or a reliable car battery charger, our technology ensures peak performance and longevity for your vehicle's power source.
The Science of Tripling Battery Life
Founded in 1994, PulseTech is the world leader in recovery, charging, maintenance, and testing of all 12-volt and 24-volt battery systems.
The secret to our success is our patented pulse waveform, which removes and prevents the buildup of lead-sulfate deposits on battery plates. That primes the battery to accept and store maximum power.
For you, this means:
- Peak performance and three times more battery life
- More efficient, resilient, and environmentally responsible equipment
- Freedom, knowing you have the power to go farther and do more.
Long trusted by the military, our tech is ideal for anyone who wants to get more out of their equipment.
