Pulse Tech

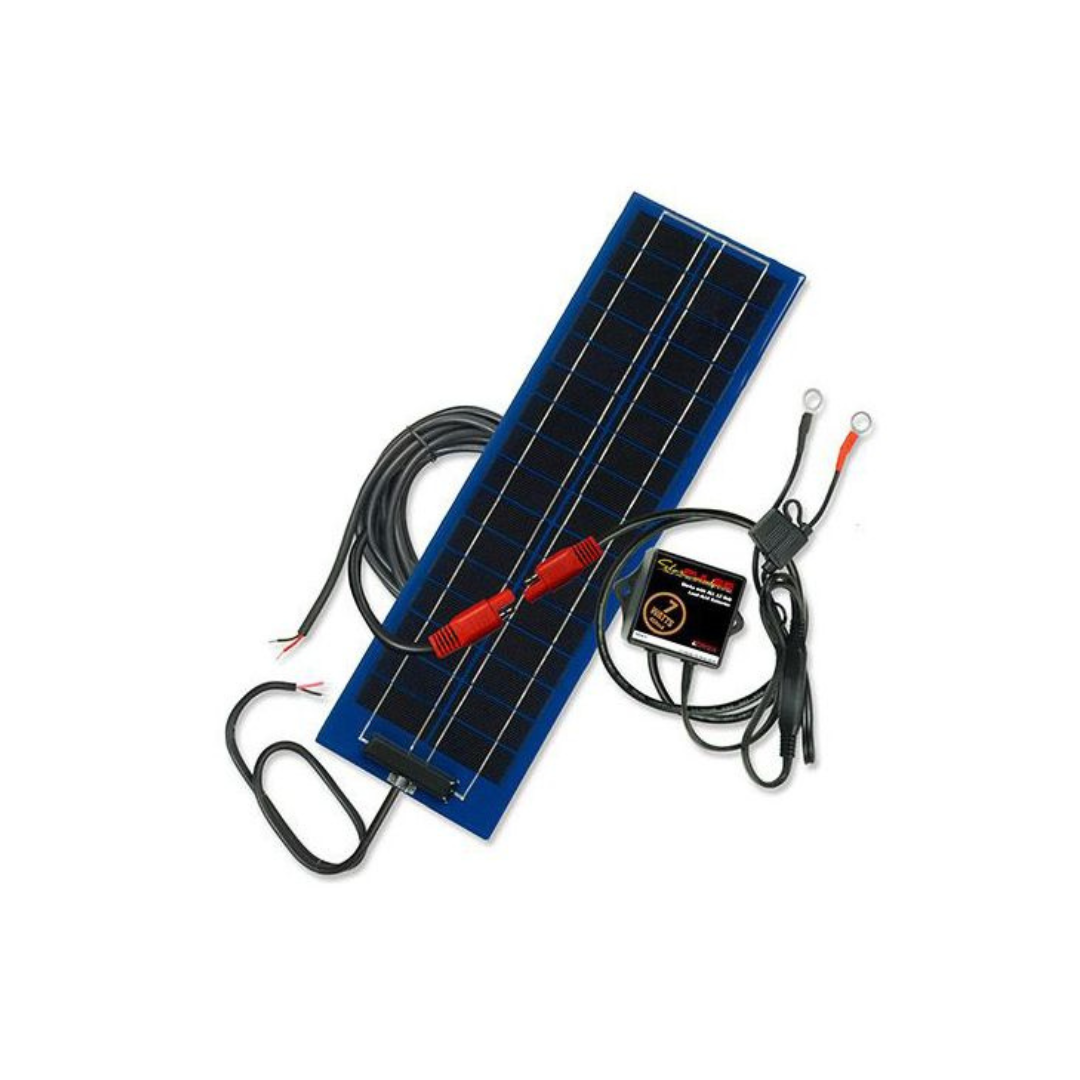

ERV 7W 12V Solar Battery Charger/Maintainer

ERV 7W 12V Solar Battery Charger/Maintainer

$194.00 USD
$194.00 USD
Sale Sold out

Part #: 735X613

Ready When It Matters Most: Charge and Maintain power to the 12V lead-acid batteries in emergency rescue and law enforcement vehicles with high parasitic drain without access to electrical power. SolarPulse's higher-efficiency, higher-quality crystalline silicon cells mean a sturdier, smaller solar panel.

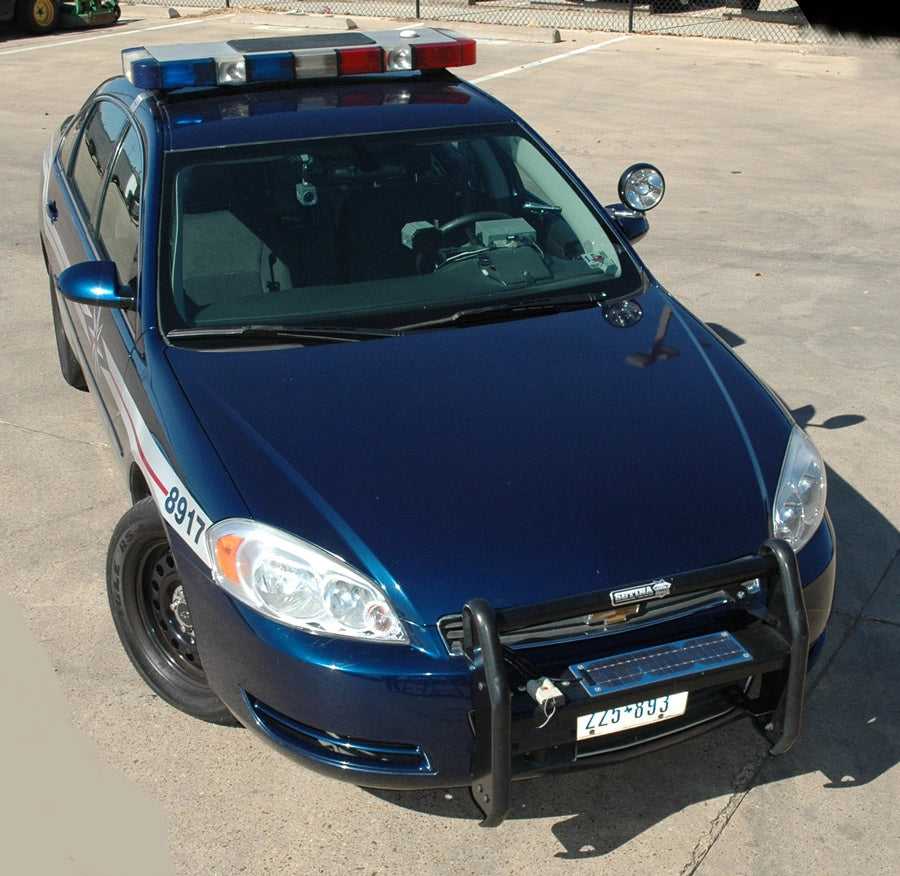

Durable, Turnkey Design: The 12V ERV unique rectangular plastic-coated solar panel is designed to fit on any light bar. It withstands weather, age, bumps and knocks.
  • Designed for easy installation on emergency and law enforcement vehicles
  • Supplied with unterminated wires for simple installation without connector removal
  • Commercial-grade crystalline cells are 30% smaller per watt than and twice as efficient as typical panels
  • Restores and maintains the normal loss of battery power on seldom-used vehicles and equipment
  • Patented Pulse Technology circuit continuously desulfates batteries as it charges
  • Reverse polarity protected
  • Ten-Year Limited Warranty

Name: SolarPulse 12V 7W ERV UNIT Solar Battery Charge Maintainer, 7W
Part Number: 735X613
Model Name: 12V 7W ERV UNIT

Input Electrical: Solar Powered

Output Electrical
Output Current: 450mA
Output Voltage, Maximum: 16.5VDC

Mechanical/Physical Characteristics
Solar Panel Dimensions: 16"L x 4.93"W x 0.25"H
Circuit Box Dimensions: 3.25"L x 2.25"W x 1.5"H
Shipping Weight: 2.7lbs
Box to Lug Wire Length: 3'
Panel to bare end: 1.5'
Bare End to box: 15.5'

Environmental
Operating Temperature: 0° to 130° F (-18° to 54° C)
Storage Temperature: 0° to 150° F (-18° to 66°C)

Indicators
Red LED shines steady in full sunlight

Warranty
Ten-Year Limited Warranty

Product Manual

Product Datasheet

View full details

HOW WE 3X BATTERY LIFE

  • Patented Pulse Technology: Our unique method removes lead sulfate crystals that cause battery failure, extending battery life.
  • Enhanced Charging Efficiency: PulseTech’s systems optimize charging cycles to ensure maximum battery longevity.
  • Proven Results: Independent testing shows a threefold increase in battery life, reducing the need for frequent replacements.
  • Cost-Effective Solutions: Fewer replacements lead to significant savings in battery costs and maintenance.
