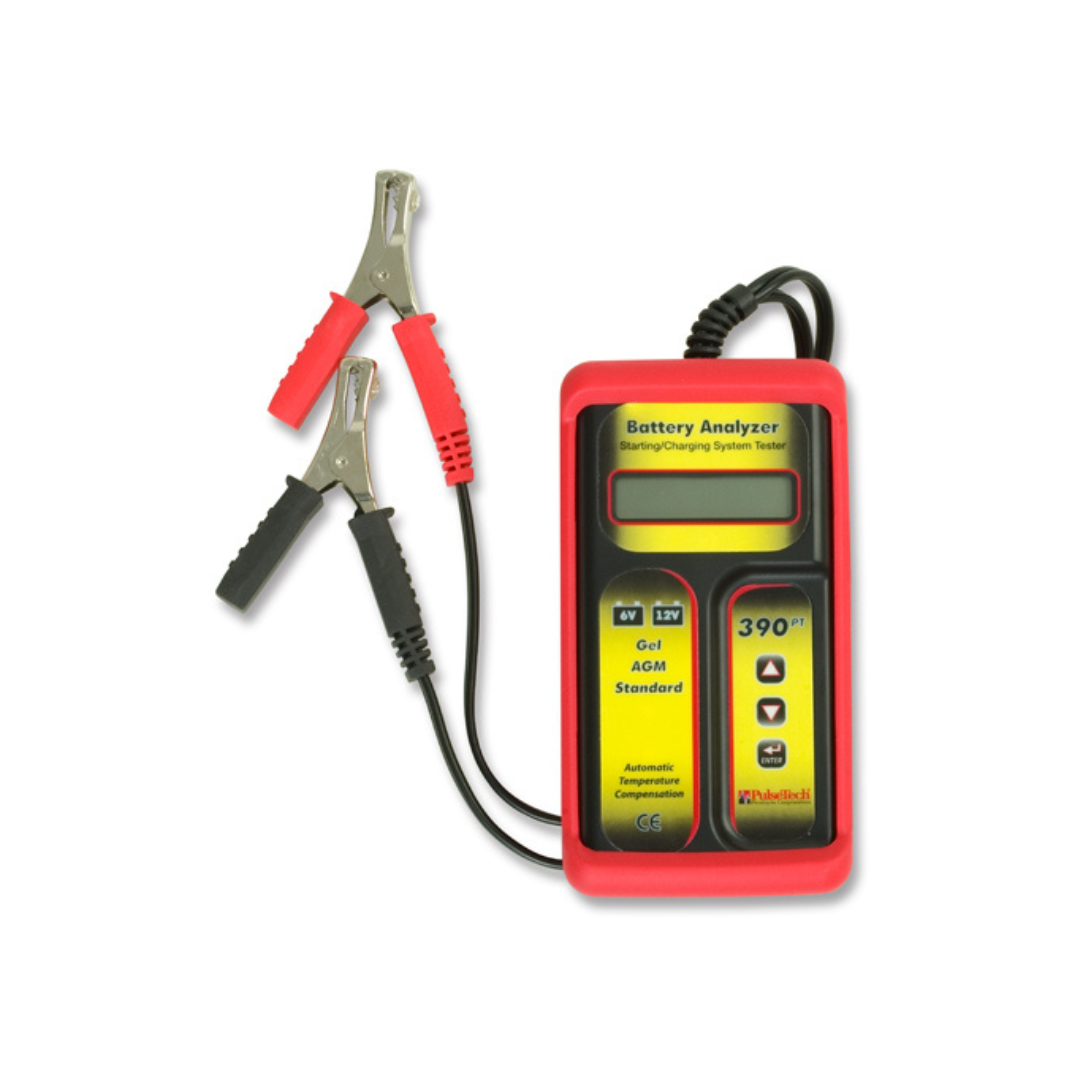

Battery Analyzer - 390PT
Battery Analyzer - 390PT
Part #: 741X390
NSN: 6130-01-580-3882
Safe and Accurate Testing: Quickly, safely, and accurately test both 6V and 12V lead-acid batteries (VRLA, AGM, gel, and flooded cell) in or out of the vehicle. Also test 12V and 24V charging systems for proper operation. Combined single-load, dynamic resistance technology and algorithms display battery voltage and capacity in easy-to-understand results in seconds. Quick-start instructions are printed on the back of the analyzer. PulseTech, pulse-tech, pulse tech, lead acid, VRLA, AGM, battery, charge, charger, maintain, maintenance, tester, analyzer, 12-volt, 24-volt, 6V, 12V, 390-pt, bad cell, battery tester, battery analyzer, starting system, alternator, cranking voltage, 741X390, Avoiding battery sulfation, Dissolving sulfate crystal extending car battery life, extending car battery life, 12v 24v 6v battery testing devices, Battery testers with printers, Battery testers without printer, Simple battery testing devices, Automotive battery tester, Midtronics, small batteries, battery tester for agm batteries, battery tester automotive, battery tester 12v, battery tester with printer, 12v battery tester automotive, 12v battery tester analyzer, 12v battery tester marine, 12v battery tester motorcycle, 12v battery tester charger, 12v battery tester load, load tester, digital load tester, digital battery analyzer, starter alternator diode ripple tester, charging system tester, starting system tester, ripple voltage, battery state of health, handheld battery tester,
· Tests (VRLA, AGM, gel and flooded cell) – both 6-Volt and 12-Volt batteries
· Determines state of charge, cold cranking amps (CCAs) and good/bad battery
· Tests batteries IN or OUT of the vehicle
· Tests 12-Volt and 24-Volt charging systems for proper operation
· Tests discharged batteries down to 1.5-Volts
· Handy QUICKSTART instruction guide print on the back so you can’t lose it
· Displays battery voltage and battery capacity
· Rugged shock resistant rubber “boot” to protect your investment
· Selects from 6 languages: English, Spanish, French, German, Italian and Portuguese
· One-Year Limited Warranty
Model Name: 390PT Analyzer 6V & 12V Battery and System Tester
Model Number: 390PT
Part Number: 741X390
NSN: 6130-01-580-3882
Features
• Tests 12V & 6V lead-acid batteries (VRLA, AGM, gel and flooded cell)
• 12V & 24V electrical system tests
• Displays battery voltage and battery capacity
• Determines state of charge, cold cranking amps (CCAs) and good/bad battery
• Tests batteries IN or OUT of the vehicle
• Handy QUICKSTART instruction guide printed on the back for easy reference
• Rugged shock resistant rubber “boot” to protect your investment
• Tests discharged batteries down to 1.5V, operating from an internal battery
Selectable display languages: English, French, Spanish, German, Italian, and Portuguese
Electrical Characteristics
Rating System: SAE, DIN, EN, IEC, JIS Battery No.
Operation Range: 40 to 2000 CCA (SAE)
Minimum Battery Voltage for Analysis: 1.5V
Voltmeter Range: 1.5V to 30V
Internal Batteries: 1 Each 9 Volt
Display
2 Lines 16 Character LCD Decision Readout of:
1. Good & Pass
2. Good & Recharge
3. Recharge & Retest
4. Bad & Replace
5. Bad Cell & Replace
State-of-Charge (SOC) Displayed as a Percentage
State-of-Health (SOH) Displayed as a Percentage
Mechanical / Physical Characteristics
Dimensions: 7.8" L x 4.5" W x 2.1" H (198 mm L x 114 mm W x 53 mm H)
Weight: 1.40 lbs. (0.64 Kg)
Shipping Weight: 1.78 lbs. (0.807 Kg) Each
Battery Cable Length: 2.62’ (80 cm)
Environmental
Operating Temperature: 32º F to 122º F (0º C to 50º C)
