Pulse Tech

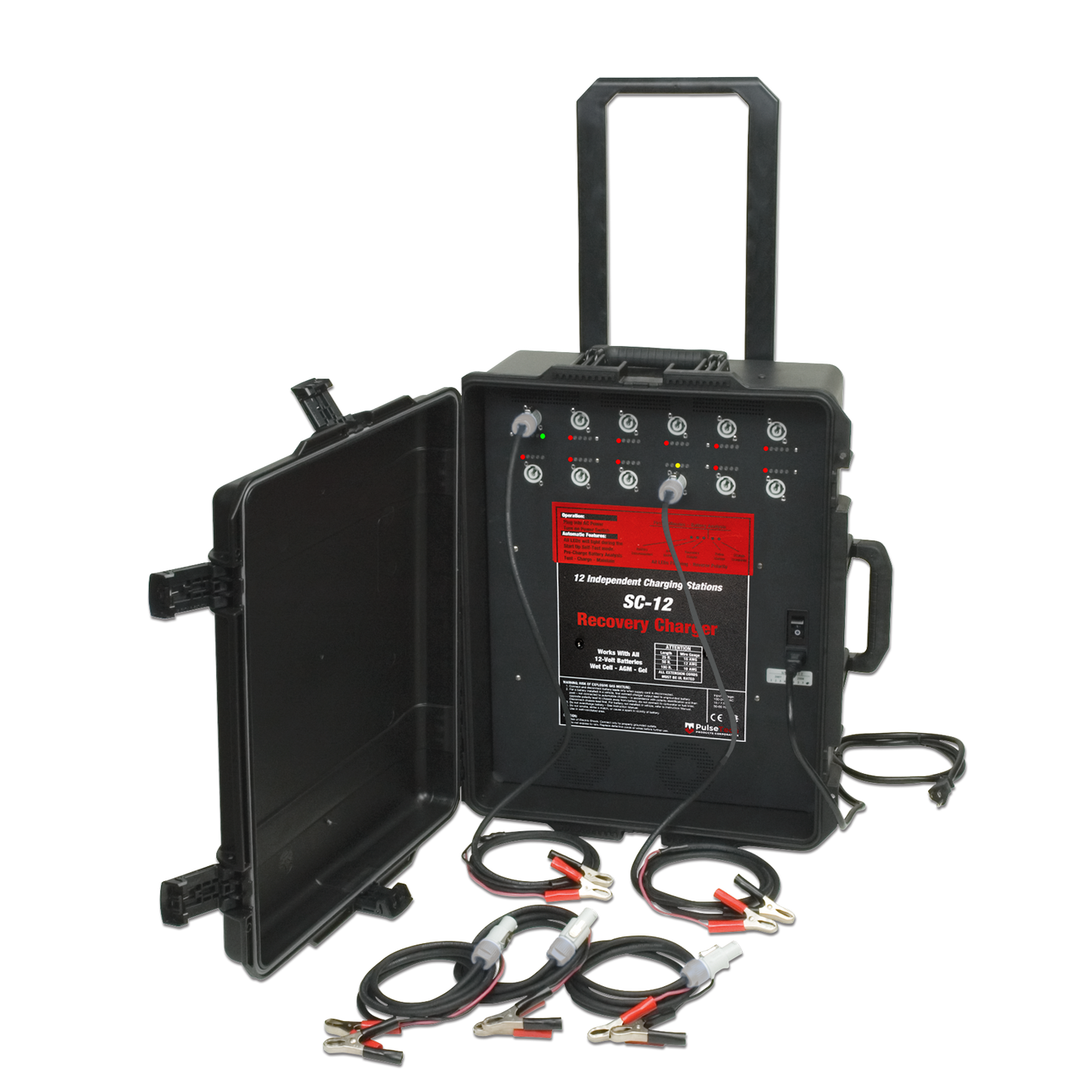

12-Station Charger (SC-12)

12-Station Charger (SC-12)

$3,799.00 USD
$3,799.00 USD
Sale Sold out

Part #: 746X810

Multi-Use: Charge, recover, and maintain from one to twelve 12V lead-acid batteries (VRLA, AGM, gel, and flooded cell) anywhere in the world.

Independent Charging Channels: Independent charging channels profile the condition of each battery and automatically cycle through a charge/recovery process. It applies the correct charge (variable up to 6A) along with an optimized pulse that increases each battery's ability to accept, retain, and release energy.

Durable and Easy to Store: The SC-12 battery charger comes in a rugged HPX plastic cabinet with wheels for maximum portability. Cables fit in case for easy storage.

    • Reverse polarity protected
    • Spark free operation
    • Rugged HPX plastic cabinet has wheels for maximum portability
    • Single switch operation
    • Works anywhere in the world with detachable IEC connector
    • One-Year Limited Warranty

Model Name: 12-Station HD Charger
Model Number: SC-12
Part Number: 746X810

Input Electrical
Input Voltage: 110 – 250 VAC
Input Current: 15 Amps Max at 110 VAC (all outputs @ 6 Amps)
Input Frequency: 50 – 60 Hz
Min. Voltage for Startup: 4 Volts

Output Electrical
Output Current: 6 Amps per Channel, 72 Amps Max
Output Voltage, Bulk Charge: 14.8 Volts

Mechanical/Physical Characteristics
Dimensions: 24.6'' x 19.7'' x 8.6''
Weight: 48lbs without cables, 57lbs complete
Shipping Weight: 63lbs
Enclosure: Black HPX Plastic
Battery Cable Length: 96'' – 14 AWB from box to battery clamps

Environmental
Operating Temperature: 0°F to 130°F (-18°C to 54°C)
Storage Temperature: 0°F to 150°F (-18°C to 66°C)

Indicators
Battery Disconnected
Bad Battery
Recovery Charge
Pulse Charge
Charge Complete
Reverse Polarity
Temperature Shutdown

Safety and Compliance
CE

Warranty
One-Year Limited Warranty

Product Manual

Product Datasheet

View full details

HOW WE 3X BATTERY LIFE

  • Patented Pulse Technology: Our unique method removes lead sulfate crystals that cause battery failure, extending battery life.
  • Enhanced Charging Efficiency: PulseTech’s systems optimize charging cycles to ensure maximum battery longevity.
  • Proven Results: Independent testing shows a threefold increase in battery life, reducing the need for frequent replacements.
  • Cost-Effective Solutions: Fewer replacements lead to significant savings in battery costs and maintenance.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
M.Y.

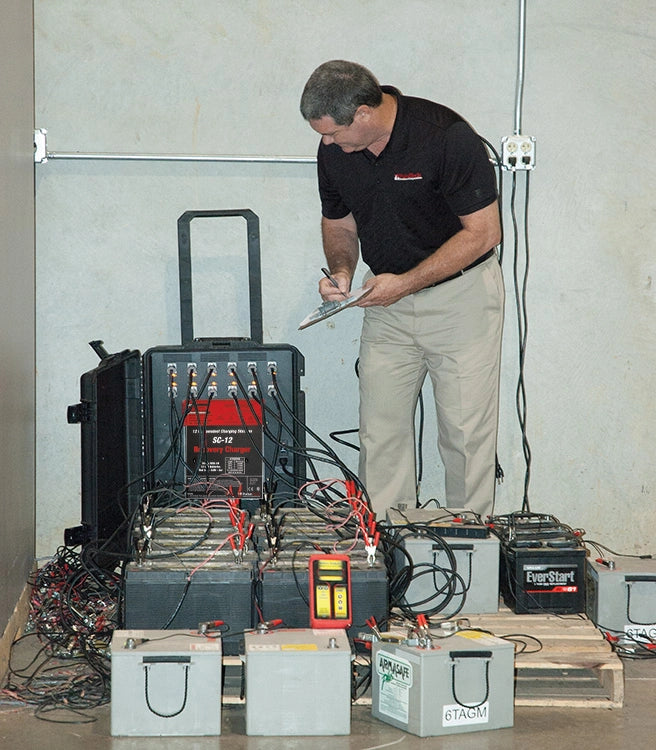

We are saving the school district thousands of dollars

We use the SC-12 on all batteries and the batteries are tested with the 777P-PT continually every day, whether they are installed in the bus or not. These products work very well. We are saving the school district thousands of dollars yearly using this program.”
