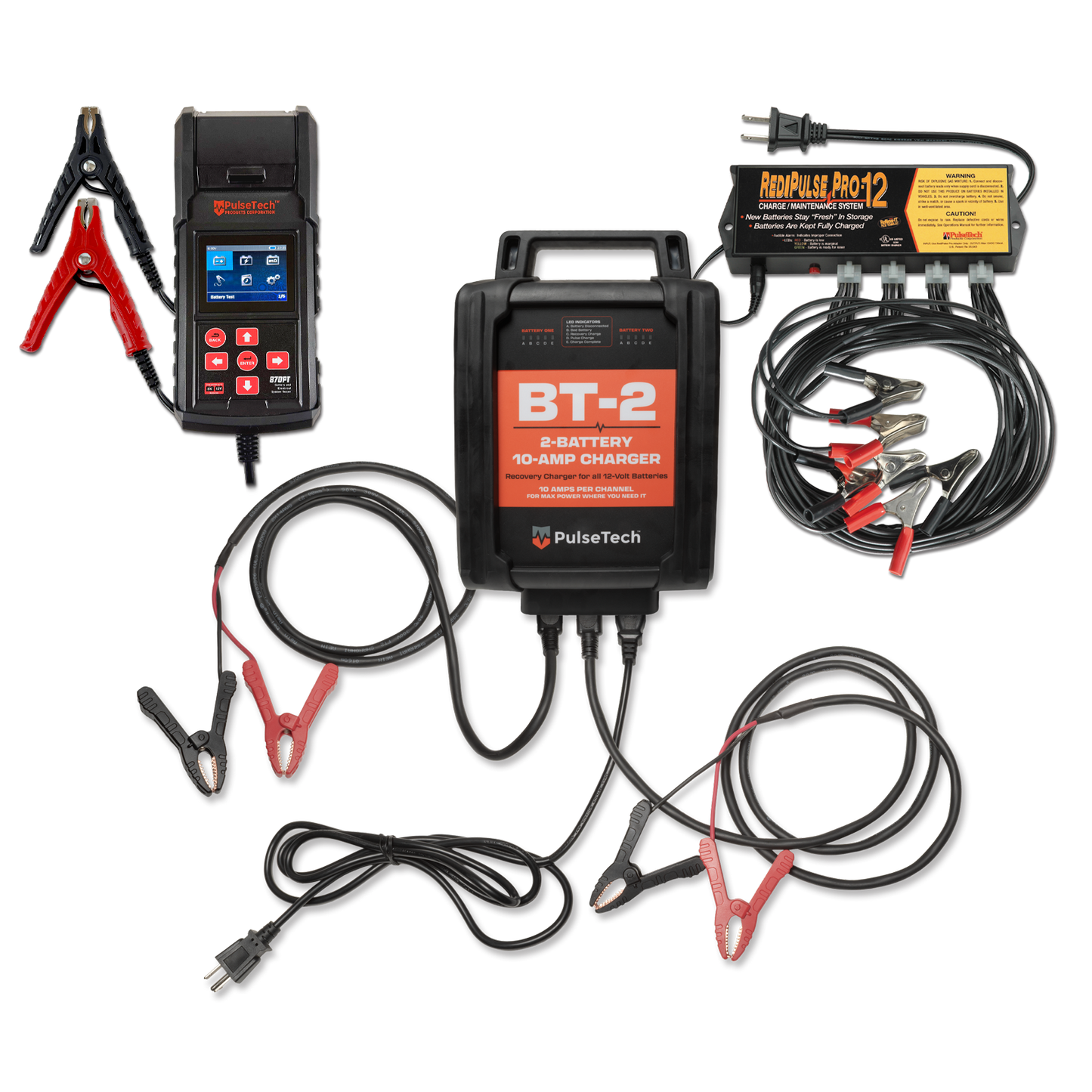

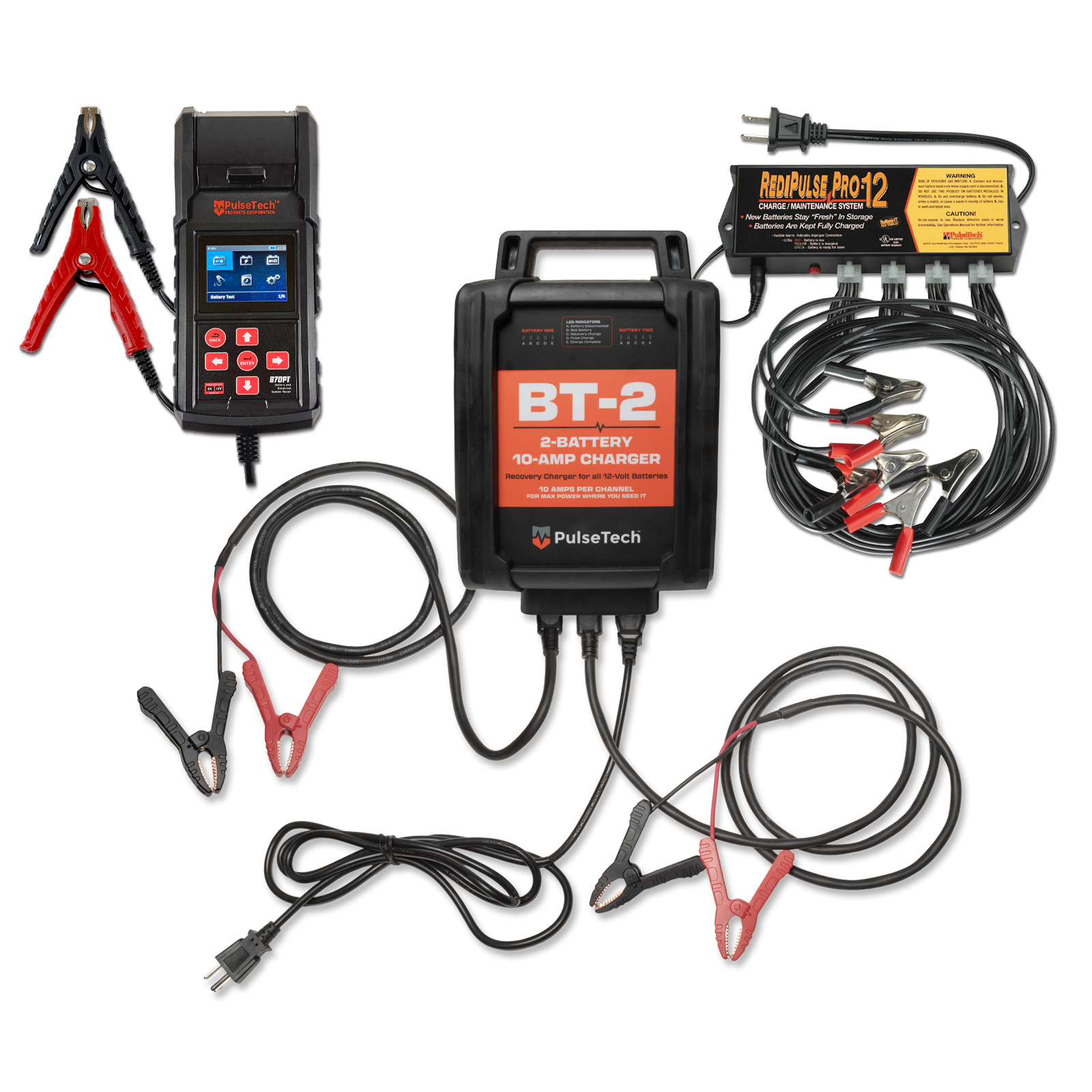

Battery Management Program Kit 3

(1)    SC-2, 2-Station 12V Battery Recovery Charger
•    Patented Pulse Technology removes sulfate crystals and extends battery life
•    5 LED indicators per cable connection
•    Reverse polarity protected
•    Spark free operation
•    Works anywhere in the world with detachable IEC connector
•    Single switch operation
•    One-Year Limited Warranty

(1)    PRO-12-RP, 12-Station Battery Maintenance System
•    Low amperage patented desulfation pulse charge offsets normal discharge rate
•    Maintains up to twelve batteries in "factory fresh" condition indefinitely
•    Patented Pulse Technology reduces and prevents sulfation buildup
•    Audible alarm signals if cables are reversed
•    No sparkling between the leads
•    Completely safe – batteries cannot be overcharged
•    2-Year Limited Warranty

(1)    390PT, 6V and 12V Battery Tester
•    Determines state of charge, cold cranking amps (CCAs) and good/bad battery
•    Tests batteries IN or OUT of the vehicle
•    Tests 12-Volt and 24-Volt charging systems for proper operation
•    Tests discharged batteries down to 1.5-Volts
•    Handy QUICKSTART instruction guide print on the back so you can’t lose it
•    Displays battery voltage and battery capacity
•    Rugged shock resistant rubber “boot” to protect your investment
•    Selects from 6 languages:  English, Spanish, French, German, Italian and Portuguese
•    One-Year Limited Warranty

Model Name: Battery Management Program Kit 3
Model Number: BMP-3
Part Number: 746X203

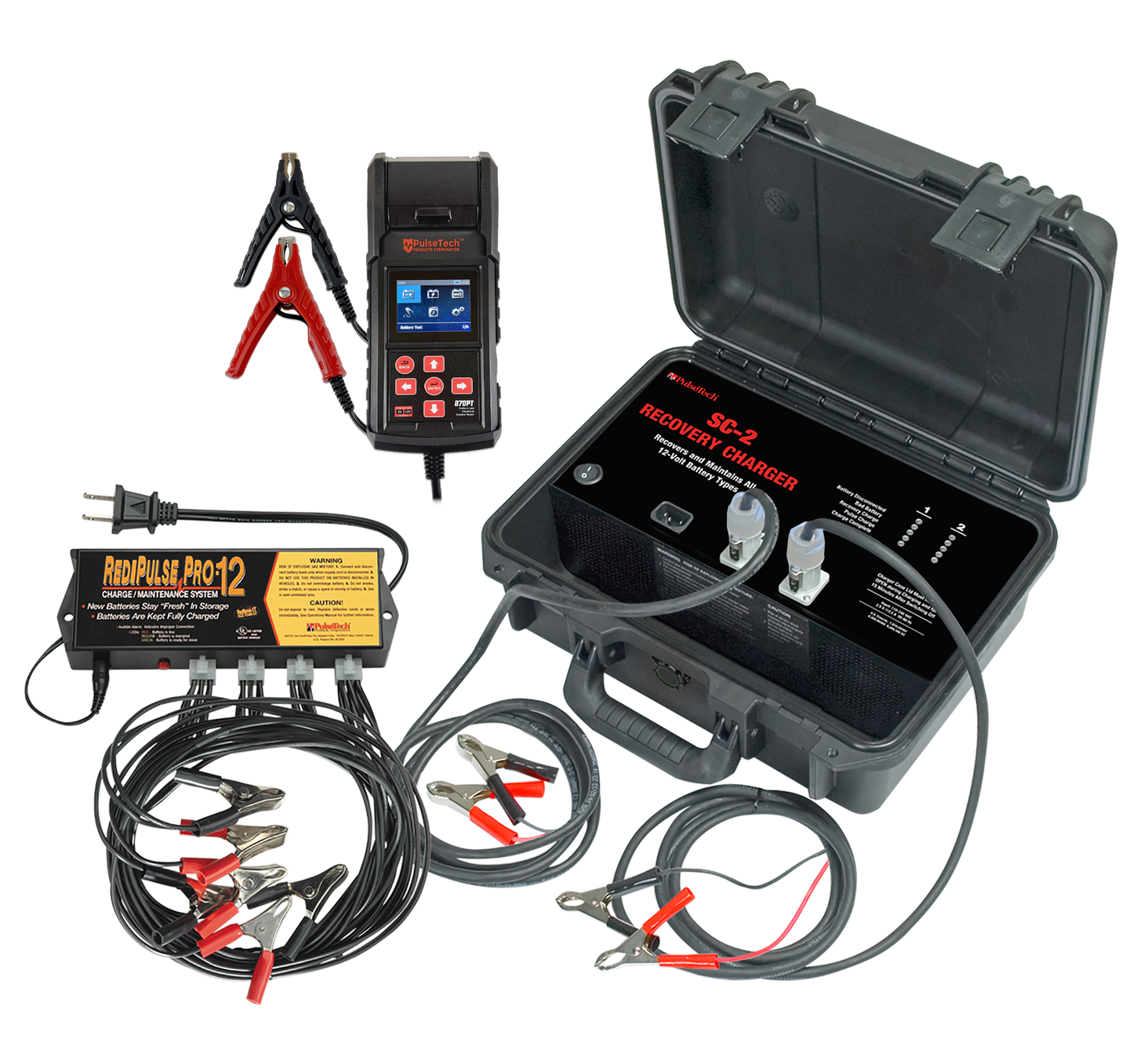

The BMP-3 includes one SC-2, one PRO-12-RP and one 390PT

SC-2

Electrical Characteristics
Input Electrical
Input Voltage: 110 - 240 VAC
Input Current: 2.5 Amps Max at 100 VAC (All outputs @6 Amps)
Input Frequency: 50 - 60 Hz
Output Electrical
Output Current: 6 Amps per Channel, 12 Amps Max
Output Voltage, Bulk Charge: 14.8 Volts
Min. Voltage for Startup: 4 Volts

Mechanical/Physical  Characteristics
Dimensions: 14.5" x 11.75" x 6.25"
Weight: 10 lbs.
Shipping Weight:  12 lbs.
Enclosure: Black HPX Plastic
Battery Cable Length: 96" - 14 AWB from box to battery clamps

Environmental
Operating Temperature:  0°F to 130°F (-18°C to 54°C)
Storage Temperature:  0°F to 150°F (-18°C to 66°C)

Indicators
Battery Disconnected
Bad Battery
Recovery Charge
Pulse Charge
Charge Complete
Reverse Polarity
Temperature Shutdown

Warranty
One-Year Limited Warranty

PRO-12-RP

Electrical Characteristics
Input Electrical
Input Voltage: 100-240 VAC
Input Current: 140 mA Max
Input Frequency: 50 – 60 Hz
Output Electrical
Number of outputs: 12
Output Current: 750 mA
Output Voltage, Bulk Charge: 14.7 V
Min. Battery Voltage for Startup: 11.5-Volts

Mechanical/Physical Characteristics
Dimensions: 7.25"L x 2.25"W x 1"H
Weight: 2 lbs
Shipping Weight: 4.3 lbs
Box-to-Clamps Wire Length: 72"

Environmental
Operating Temperature: 0°F to 130°F (-18°C to 54°C)
Storage Temperature: 0°F to 150°F (-18°C to 66°C)

Safety and Compliance
CE Compliant

Warranty
Two-Year Limited Warranty

390PT

Electrical Characteristics
    Rating System: SAE, DIN, EN, IEC, JIS Battery No.
    Operation Range: 40 to 2000 CCA (SAE)
    Minimum Battery Voltage for Analysis: 1.5V
    Voltmeter Range: 1.5V to 30V
    Internal Batteries: 1 Each 9 Volt

Display
     2 Lines 16 Character LCD Decision Readout of:
        1. Good & Pass
        2. Good & Recharge
        3. Recharge & Retest
        4. Bad & Replace
        5. Bad Cell & Replace
    State-of-Charge (SOC) Displayed as a Percentage
    State-of-Health (SOH) Displayed as a Percentage

Mechanical / Physical Characteristics
    Dimensions: 7.8" L x 4.5" W x 2.1" H (198mm L x 114mm W x 53mm H)
    Weight: 1.40 lbs. (0.64 Kg)
    Shipping Weight: 1.78 lbs. (0.807 kg) Each
    Battery Cable Length: 2.62’ (80 cm)

Environmental
    Operating Temperature: 32°F to 122°F (0°C to 50°C).
