Pulse Tech

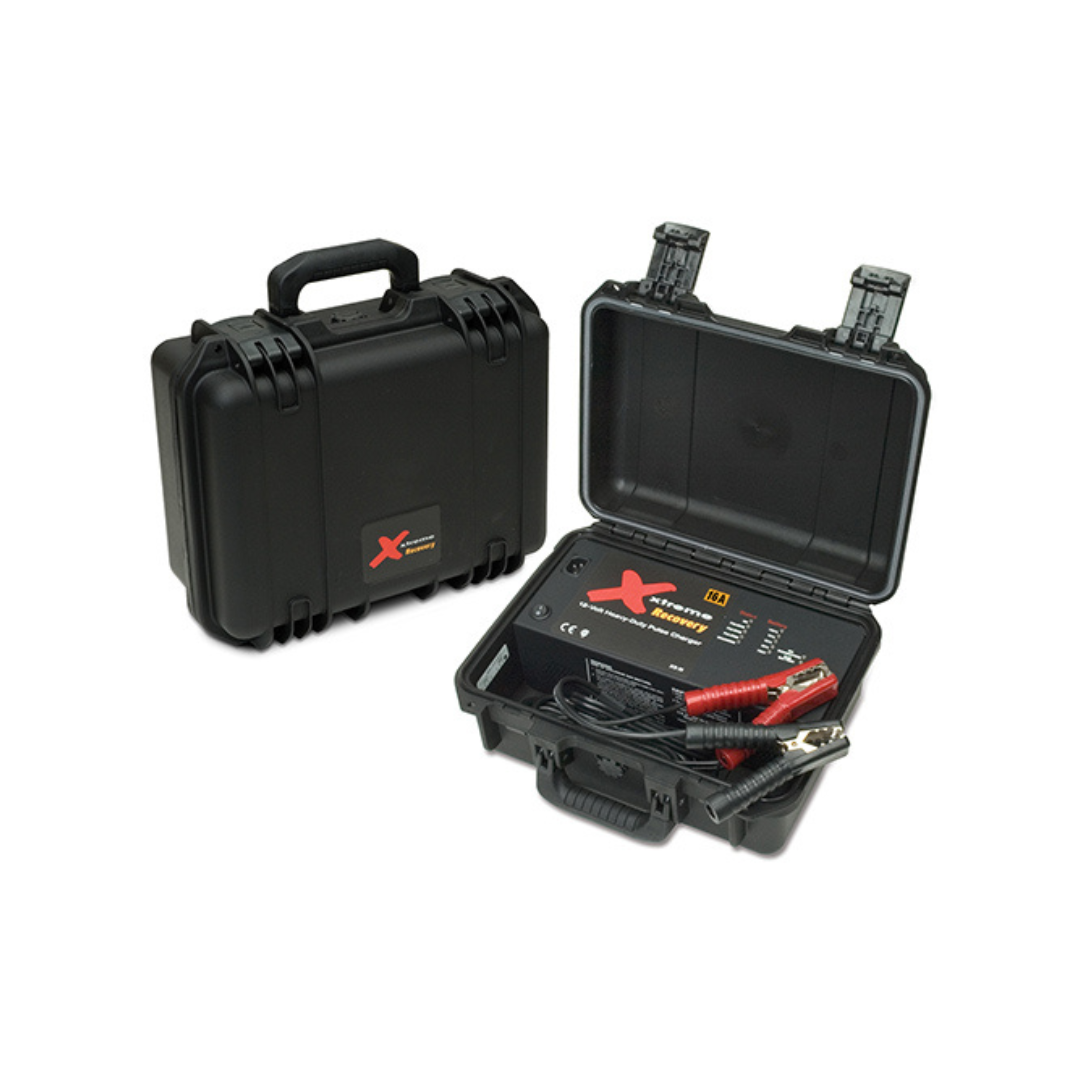

XCR-20 Xtreme Recovery Charger & Desulfator

XCR-20 Xtreme Recovery Charger & Desulfator

$889.00 USD
$889.00 USD
Sale Sold out

Part #: 100X500

Built for Recovery: This 16-amp shop charger and desulfator is built to recover any type of 12V lead-acid battery (VRLA, AGM, gel, and flooded cell), priming even the deadest battery for peak performance. 100x500

Patented Pulse Technology: Reduces sulfation build-up on the battery plates, improving performance and extending battery life like no other tech on the market.

Durable and Portable: Self-enclosed in a convenient, water-resistant, heavy-duty case, this best-in-class charger is portable and easy to store. Heavy-duty battery clamps are replaceable.

•    Charges and maintains 12-Volt lead-acid VRLA, AGM, gel and flooded batteries
•    Ideal for larger 12-Volt batteries including group 31, 4-D and 8-D
•    Recovers deeply sulfated batteries
•    Patented Pulse Technology extends battery life up to 3X
•    Enclosed in a convenient, water-resistant, heavy-duty case
•     Innovative “in case” clamp, cable and power cord storage
•    Over temperature protection
•    Output current limit protection
•    Quick disconnect at battery
•    Heavy-duty replaceable battery cable with clamps
•    One-Year Limited Warranty

Model Name: Xtreme Charge 16 Amp Battery Recovery Charger
Model Number: 100X500
Part Number: XCR-20

Electrical Characteristics
Input Electrical
Input Voltage: 110-240 V AC
Input Current: 3 Amps @ 110 VAC
Input Frequency: 50-60 Hz
Output Electrical
Min. Battery Voltage for Startup: 4 Volts
Output Current: 16 A DC
Output Voltage, Bulk Charge: 14.9 Volts

Mechanical/Physical  Characteristics
Dimensions: 14.2''L x 11.4''W x 6.5''H
Weight: 11.1lbs (5.03kg)
Shipping Weight: 12lbs
Power Cord Length: 6 feet
Battery Cable Length: 6 feet

Environmental
Operating Temperature: 0°F to 130°F (-18°C to 54°C)
Storage Temperature: 0°F to 150°F (-18°C to 66°C)

Indicators
On
Test
No Connection
Charging
Pulsing
Bad Battery
Battery State of Charge: 25%, 50%, 75%, 100%.

Safety and Compliance
UL Listed

Product Manual

Product Datasheet

View full details

HOW WE 3X BATTERY LIFE

  • Patented Pulse Technology: Our unique method removes lead sulfate crystals that cause battery failure, extending battery life.
  • Enhanced Charging Efficiency: PulseTech’s systems optimize charging cycles to ensure maximum battery longevity.
  • Proven Results: Independent testing shows a threefold increase in battery life, reducing the need for frequent replacements.
  • Cost-Effective Solutions: Fewer replacements lead to significant savings in battery costs and maintenance.
