SP-7 SolarPulse Charger/Maintainer OBD-T
SP-7 SolarPulse Charger/Maintainer OBD-T
Part #: 735X700

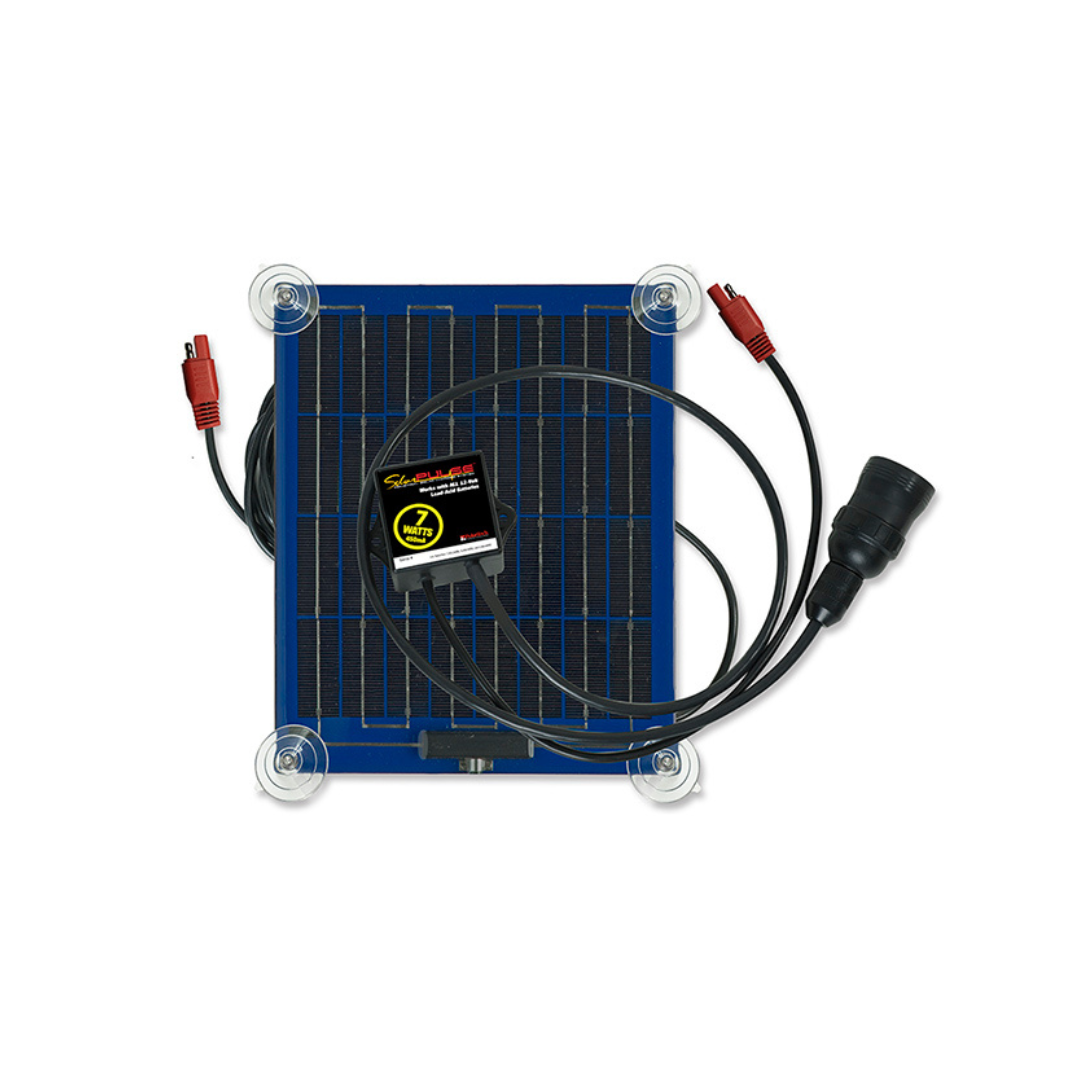

Versatile Application: Charge, restore and maintain 12V lead-acid batteries on outdoor vehicles and equipment. This charger/maintainer can be installed and removed in minutes. It connects directly to the OBD port. Four suction cups attach the solar panel to the vehicles hood, roof, or fender. The solar panel replaces the power loss from electrical accessories that occurs in seldom or erratically-used outdoor vehicles, even when the ignition is switched off.
Powerful Performance: Pulse Technology reverses sulfate crystal buildup on the battery plates, allowing batteries to recharge faster, accept a full charge, and work at maximum power. The SP-7-OBD-T solar panel can be used on a single 12V battery or two 12V batteries connected in parallel. It is a higher-watt version of the SP-5-OBD-T SolarPulse 12V Temporary Battery Solar Charger Maintainer, 5W. SP7
• Maintains batteries at full state of charge
• Quick and easy temporary installation
• Dramatically reduce jump starts
• 30% smaller footprint than typical panels
• Commercial grade solar panel is virtually indestructible
• Patented Pulse Technology extends battery life three times
• Supports sustainability programs
• Reverse polarity protected
• Ten-Year Limited Warranty (excluding suction cups)
Name: SP-7-OBD-T SolarPulse Temporary Solar Charger, 7-Watt
Part Number: 735X700
Model Name: SP-7-OBD-T
Output Electrical
Output Current: 450 mA
Output Voltage, Bulk Charge: 16.5 V dc
Mechanical/Physical Characteristics
Solar Panel Dimensions: 10.25''L x 8.85''W x 0.25''H
Circuit Box Dimensions: 3.4” L x 2.4” W x 1.5” H
Weight: 2.4lbs
Shipping Weight: 3lbs
Box to Lug Wire Length: 3'
Box to Panel Wire Length: 17'
Quick Disconnect Between Solar Panel & Circuit Box
Environmental
Operating Temperature: 0° F to 130° F (-18° C to 54° C)
Storage Temperature: 0° F to 150° F (-18° C to 66° C)
Indicators
Red LED shines steady in full sunlight and dims in partial light
Warranty
Ten-Year Limited Warranty (excluding suction cups)
HOW WE 3X BATTERY LIFE
- Patented Pulse Technology: Our unique method removes lead sulfate crystals that cause battery failure, extending battery life.
- Enhanced Charging Efficiency: PulseTech’s systems optimize charging cycles to ensure maximum battery longevity.
- Proven Results: Independent testing shows a threefold increase in battery life, reducing the need for frequent replacements.
- Cost-Effective Solutions: Fewer replacements lead to significant savings in battery costs and maintenance.
The Science of Tripling Battery Life
Founded in 1994, PulseTech is the world leader in recovery, charging, maintenance, and testing of all 12-volt and 24-volt battery systems.
The secret to our success is our patented pulse waveform, which removes and prevents the buildup of lead-sulfate deposits on battery plates. That primes the battery to accept and store maximum power.
For you, this means:
- Peak performance and three times more battery life
- More efficient, resilient, and environmentally responsible equipment
- Freedom, knowing you have the power to go farther and do more.
Long trusted by the military, our tech is ideal for anyone who wants to get more out of their equipment.
