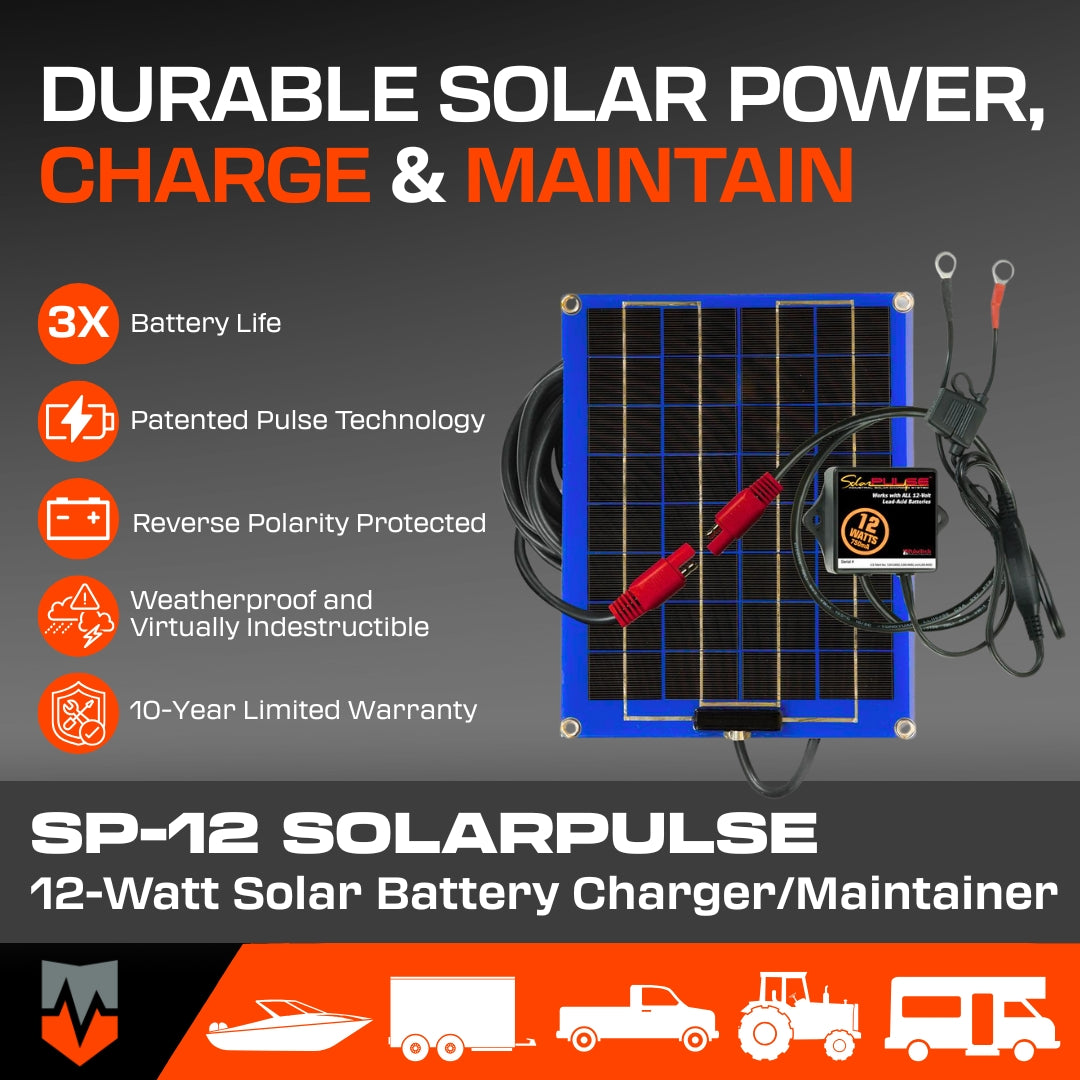

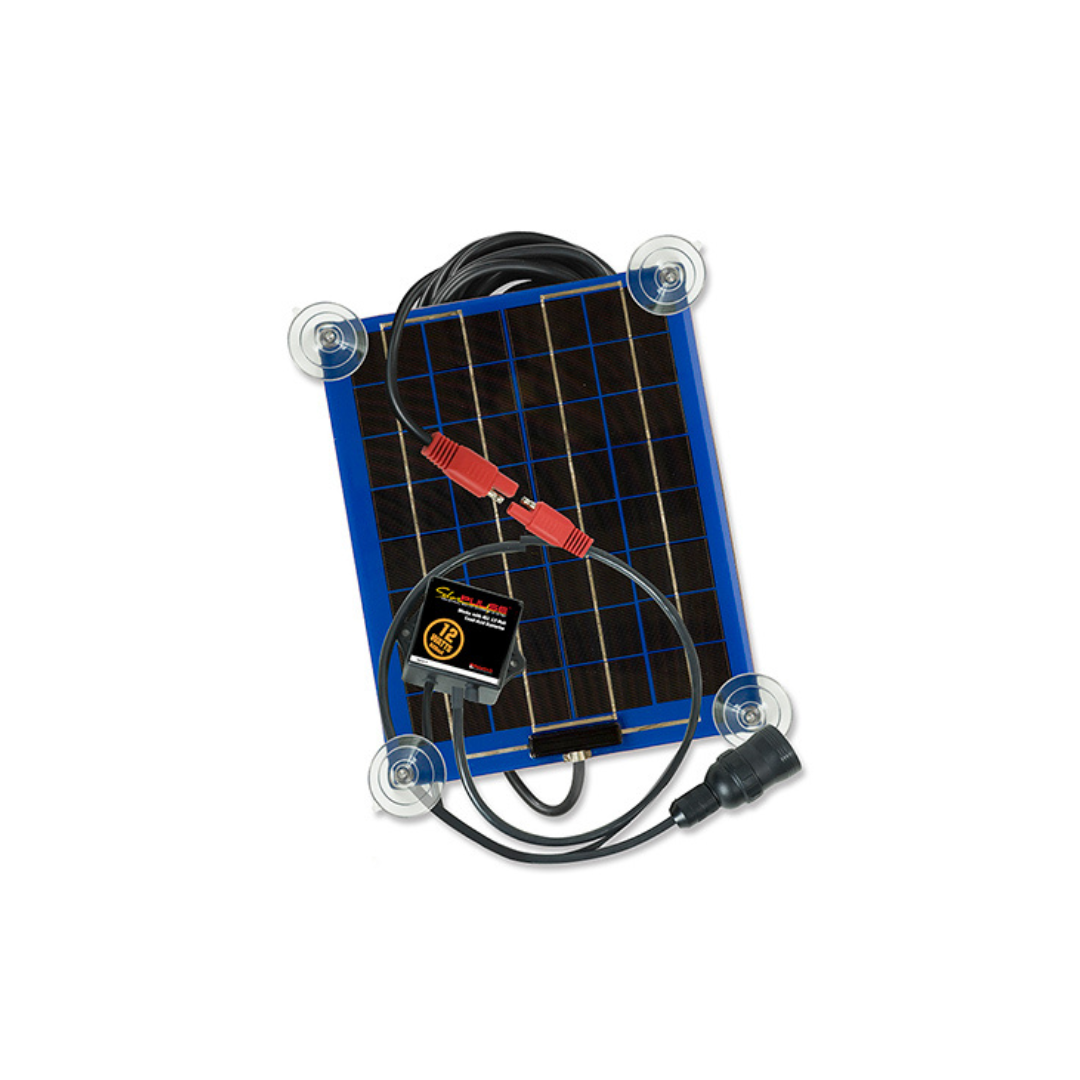

SP-12 SolarPulse Charger/Maintainer OBD-T
SP-12 SolarPulse Charger/Maintainer OBD-T
Part #: 735X353
Multi-Use: Charger features the on-board diagnostics J1939-1 connector for three-to-four batteries connected in parallel. It is designed to charge, maintain, and desulfate any 12V lead-acid batteries including VRLA, AGM, gel, and flooded cell on outdoor vehicles and equipment, without overcharging or overheating.
Durable and Powerful Performance: A clear polyurethane plastic coating makes this charger virtually indestructible. A solid red LED shines steadily in full sunlight and fades in partial sunlight. Reverse polarity protected. The Pulse Technology extends battery life up to three times. The 12-watt solar panel dimensions are 12.41"L x 9.85"W x 0.2"H. Includes a 3' box-to-lug wire and 17' box-to-panel wire. 10-Year Limited Warranty. The SP-12-OBD-T is a higher-watt version of the SP-10-OBD-T 10W Solar Charger. SP12
- Keeps 3-4 batteries connected in parallel in peak condition
- Maintains batteries at full state of charge
- Dramatically reduces jumpstarts
- 30% smaller footprint than typical panels
- Commercial grade solar panel is virtually indestructible
- Patented Pulse Technology extends battery life up to 3X
- Supports sustainability programs
- Reverse polarity protected
- Ten-Year Limited Warranty
Name: SP-12-OBD-T SolarPulse Temporary Solar Charger, 12-Watt
Part Number: 735X353
Model Name: SP-12-OBD-T
Output Electrical
Output Current: 750 mA
Output Voltage, Bulk Charge: 16.5 V dc
Mechanical/Physical Characteristics
Solar Panel Dimensions: 12.41” L x 9.85” W x 0.2” H
Circuit Box Dimensions: 3.4” L x 2.4” W x 1.5” H
Weight: 2.5lbs
Shipping Weight: 3.15lbs
Box to Lug Wire Length: 3'
Box to Panel Wire Length: 17'
Quick Disconnect Between Solar Panel & Circuit Box
Environmental
Operating Temperature: 0° F to 130° F (-18° C to 54° C)
Storage Temperature: 0° F to 150° F (-18° C to 66° C)
Indicators
Red LED shines steady in full sunlight and fades in partial light
Warranty
Ten-Year Limited Warranty
HOW WE 3X BATTERY LIFE
- Patented Pulse Technology: Our unique method removes lead sulfate crystals that cause battery failure, extending battery life.
- Enhanced Charging Efficiency: PulseTech’s systems optimize charging cycles to ensure maximum battery longevity.
- Proven Results: Independent testing shows a threefold increase in battery life, reducing the need for frequent replacements.
- Cost-Effective Solutions: Fewer replacements lead to significant savings in battery costs and maintenance.
The Science of Tripling Battery Life
Founded in 1994, PulseTech is the world leader in recovery, charging, maintenance, and testing of all 12-volt and 24-volt battery systems.
The secret to our success is our patented pulse waveform, which removes and prevents the buildup of lead-sulfate deposits on battery plates. That primes the battery to accept and store maximum power.
For you, this means:
- Peak performance and three times more battery life
- More efficient, resilient, and environmentally responsible equipment
- Freedom, knowing you have the power to go farther and do more.
Long trusted by the military, our tech is ideal for anyone who wants to get more out of their equipment.
