Battery Management Program Kit 1

(1)    SC-12, 12-Station 12V Battery Recovery Charger
•    Five LED indicators per channel show the condition of each battery
•    Reverse polarity protected
•    Spark free operation
•    Rugged HPX plastic cabinet has wheels for maximum portability
•    Single switch operation
•    Works anywhere in the world with detachable IEC connector
•    One-Year Limited Warranty

(1)    PRO-12-RP, 12-Station Battery Maintenance System
•    Low amperage patented desulfation pulse charge offsets normal discharge rate
•    Maintains up to twelve batteries in "factory fresh" condition indefinitely
•    Patented Pulse Technology reduces and prevents sulfation buildup
•    Audible alarm signals if cables are reversed
•    No sparkling between the leads
•    Completely safe – batteries cannot be overcharged
•    2-Year Limited Warranty

(1)    777P-PT, 6V/12V Digital Tester with Printer
•    Tests 12-Volt and 24-Volt starting/charging systems
•    Uses patented single-load, dynamic resistance technology
•    Displays battery voltage and capacity
•    Easy to use intuitive screen prompts
•    Tests discharged batteries down to 1.5-Volts
•    Includes built-in thermal printer with date/time function
•    Comes with heavy-duty detachable test leads
•    Adjustable brightness LCD display
•    Includes high-impact molded carrying case
•    Select from 7 languages - English, Spanish, French, German, Italian, Portuguese and Japanese
•    One-Year Limited Warranty

Model Name: Battery Management Program Kit 1
Model Number: BMP-1
Part Number: 746X201

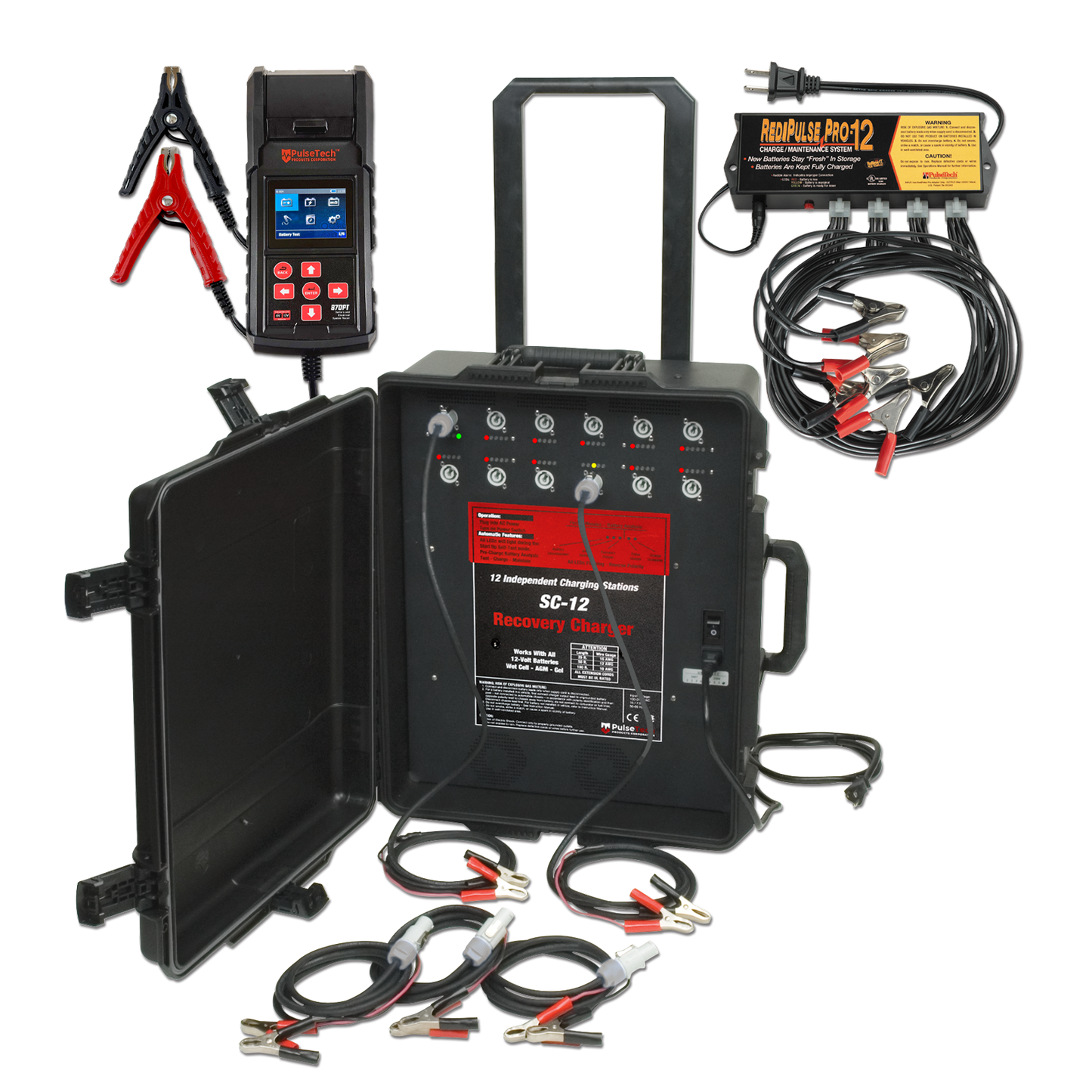

The BMP-1 includes one SC-12, one PRO-12-RP and one 777P-PT

SC-12

Input Electrical
Input Voltage: 100 – 240 VAC
Input Current: 15 Amps Max at 100 VAC (all outputs @ 6 Amps)
Input Frequency: 50 – 60 Hz
Output Electrical
Output Current: 6 Amps per Channel, 72 Amps Max
Output Voltage, Bulk Charge: 14.8 Volts
Min. Battery Voltage for Startup: 4 Volts

Mechanical/Physical Characteristics
Dimensions: 24.6" x 19.7" x 8.6"
Weight: 48 lbs without cables, 57 lbs complete
Shipping Weight: 63 lbs
Enclosure: Black HPX Plastic
Battery Cable Length: 96" – 14 AWB from box to battery clamps

Environmental
Operating Temperature: 0°F to 130°F (-18°C to 54°C)
Storage Temperature: 0°F to 150°F (-18°C to 66°C)

Indicators
Battery Disconnected
Bad Battery
Recovery Charge
Pulse Charge
Charge Complete
Reverse Polarity
Temperature Shutdown

Safety and Compliance
CE compliant

Warranty
One-Year Limited Warranty

PRO-12-RP

Electrical Characteristics
Input Electrical
Input Voltage: 100-240 VAC
Input Current: 140 mA Max
Input Frequency: 50 – 60 Hz
Output Electrical
Number of outputs: 12
Output Current: 750 mA
Output Voltage, Bulk Charge: 14.7 V
Min. Battery Voltage for Startup: 11.5-Volts

Mechanical/Physical Characteristics
Dimensions: 7.25"L x 2.25"W x 1"H
Weight: 2 lbs
Shipping Weight: 4.3 lbs
Box-to-Clamps Wire Length: 72”

Environmental
Operating Temperature: 0°F to 130°F (-18°C to 54°C)
Storage Temperature: 0°F to 150°F (-18°C to 66°C)

Safety and Compliance
CE Compliant

Warranty
Two-Year Limited Warranty

777P-PT

Electrical Characteristics
Rating System: SAE, DIN, EN, IEC, JIS Battery No.
Operation Range: 40 to 2000 CCA (SAE)
Minimum Battery Voltage for Analysis: 1.5V
Voltmeter Range: 1.5V to 30V
Internal Batteries: Six 1.5V AA Batteries

Display
4 Lines 16 Character LCD with Adjustable Brightness
Decision Readout of:
1. Good & Pass
2. Good & Recharge
3. Recharge & Retest
4. Bad & Replace
5. Bad Cell & Replace
State-of-Charge (SOC) Displayed as a Percentage
State-of-Health (SOH) Displayed as a Percentage

Printer
Type: Thermal
Paper: 2.3"W x 1.2"L (57mm W x 30mm L)

Mechanical / Physical Characteristics
Dimensions: 9.9"L x 5.1"W x 2.5"H (251mm L x 130mm W x 64mm H)
Weight: 2.15 lbs. (0.975 Kg); 5.7 lbs. (2.59 Kg) With Carrying Case, Manual, and Extra Printer Paper
Shipping Weight: 7.85 lbs. (3.56 Kg) Each
Battery Cable Length: 3.9’ (180 cm)

Environmental
Operating Temperature: 32°F to 122°F (0°C to 50°C)

Warranty
1-Year Limited Warranty
