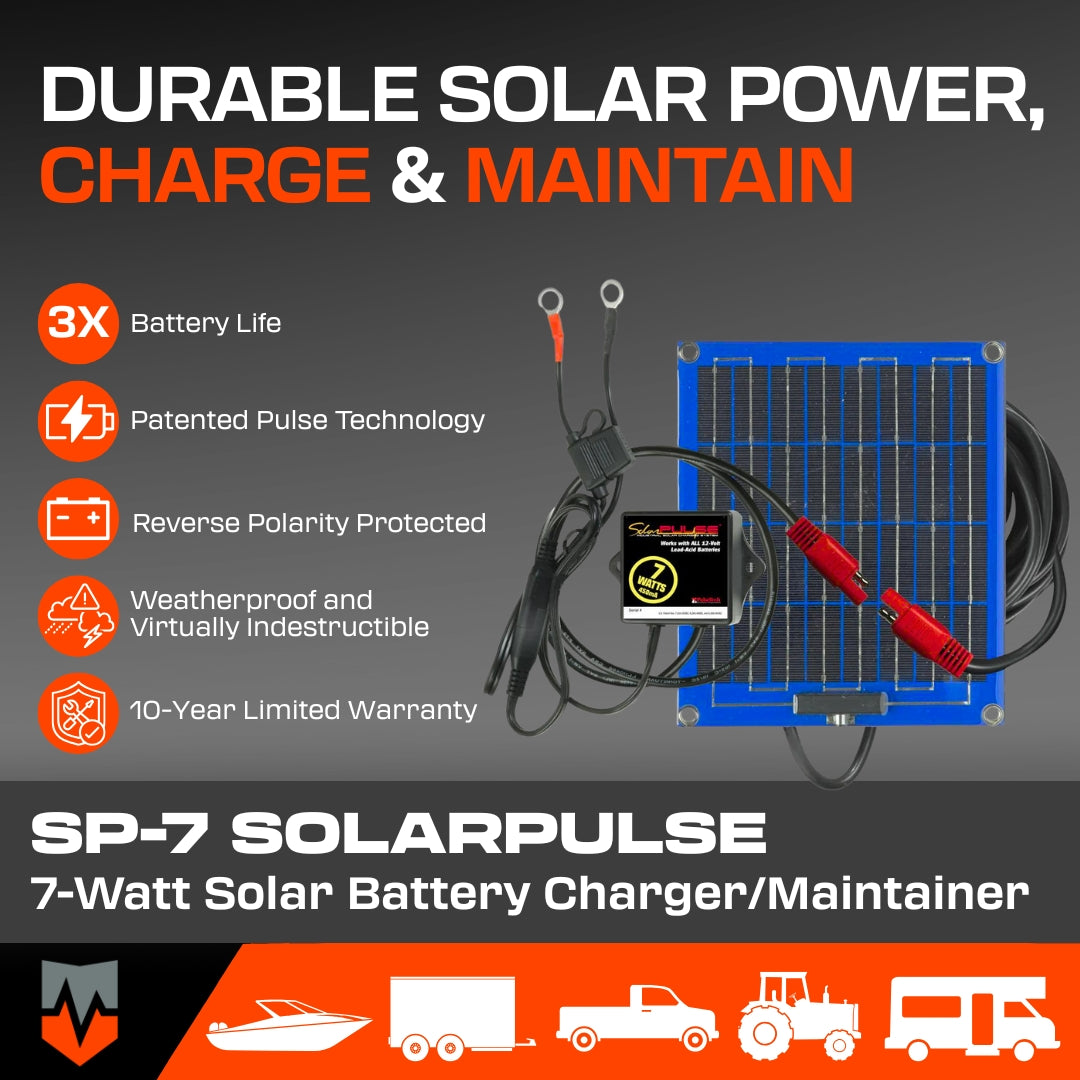

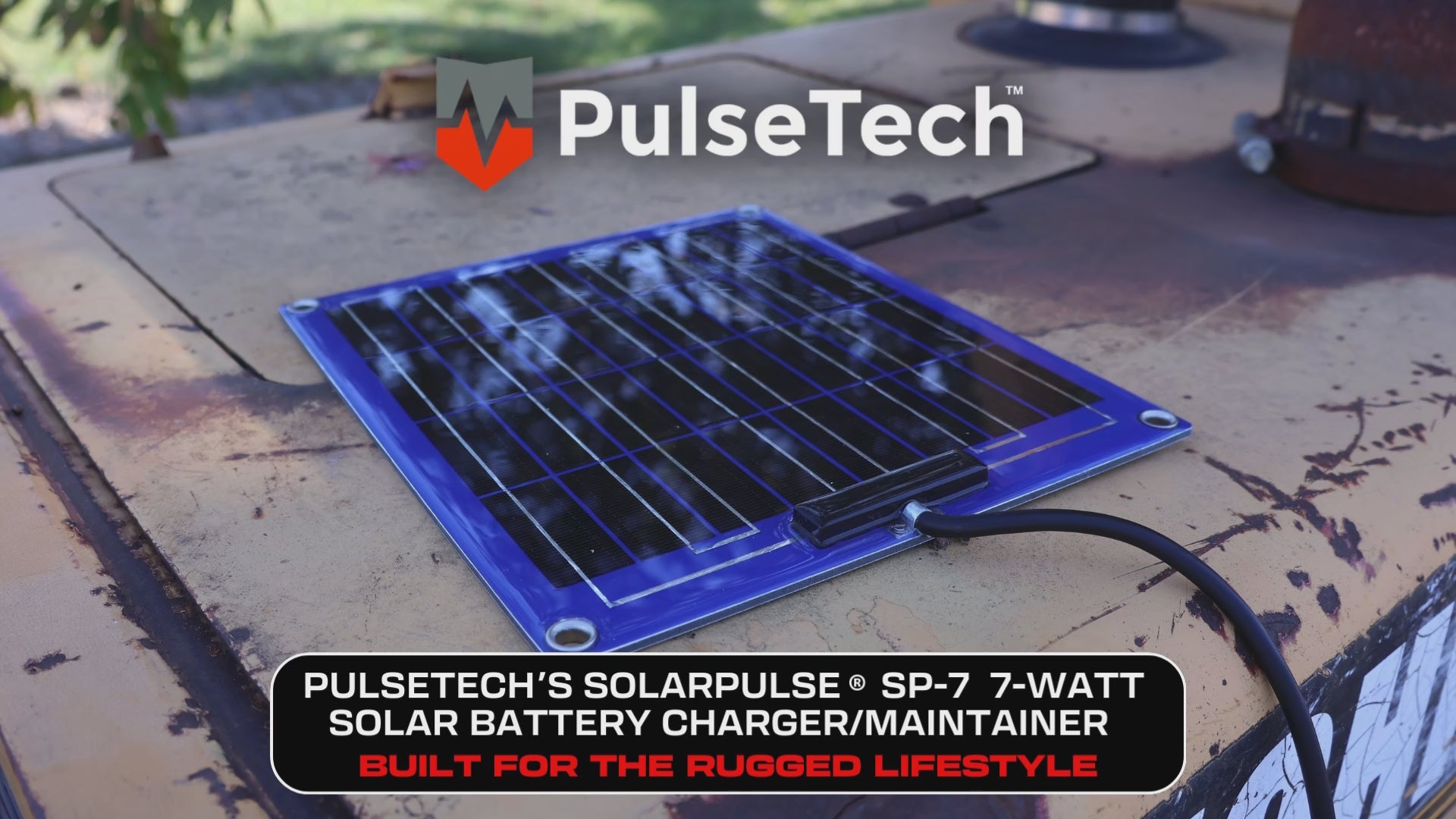

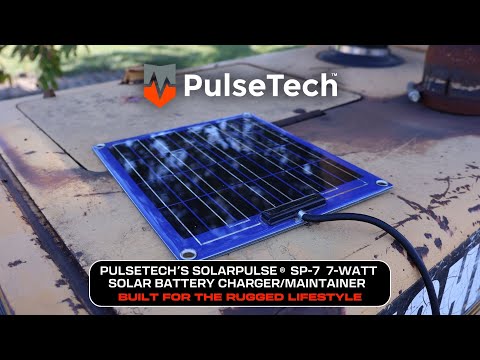

SP-7 SolarPulse Solar Battery Charger/Maintainer
SP-7 SolarPulse Solar Battery Charger/Maintainer
Part #: 735X467
NSN: 6130-01-446-7154
- The SP-7 solar panel delivers a full 7-Watts of power in a compact, durable size (10.25''L x 8.85''W x 0.25''H). For ultimate performance, it should be used to power one to three 12V lead-acid batteries.

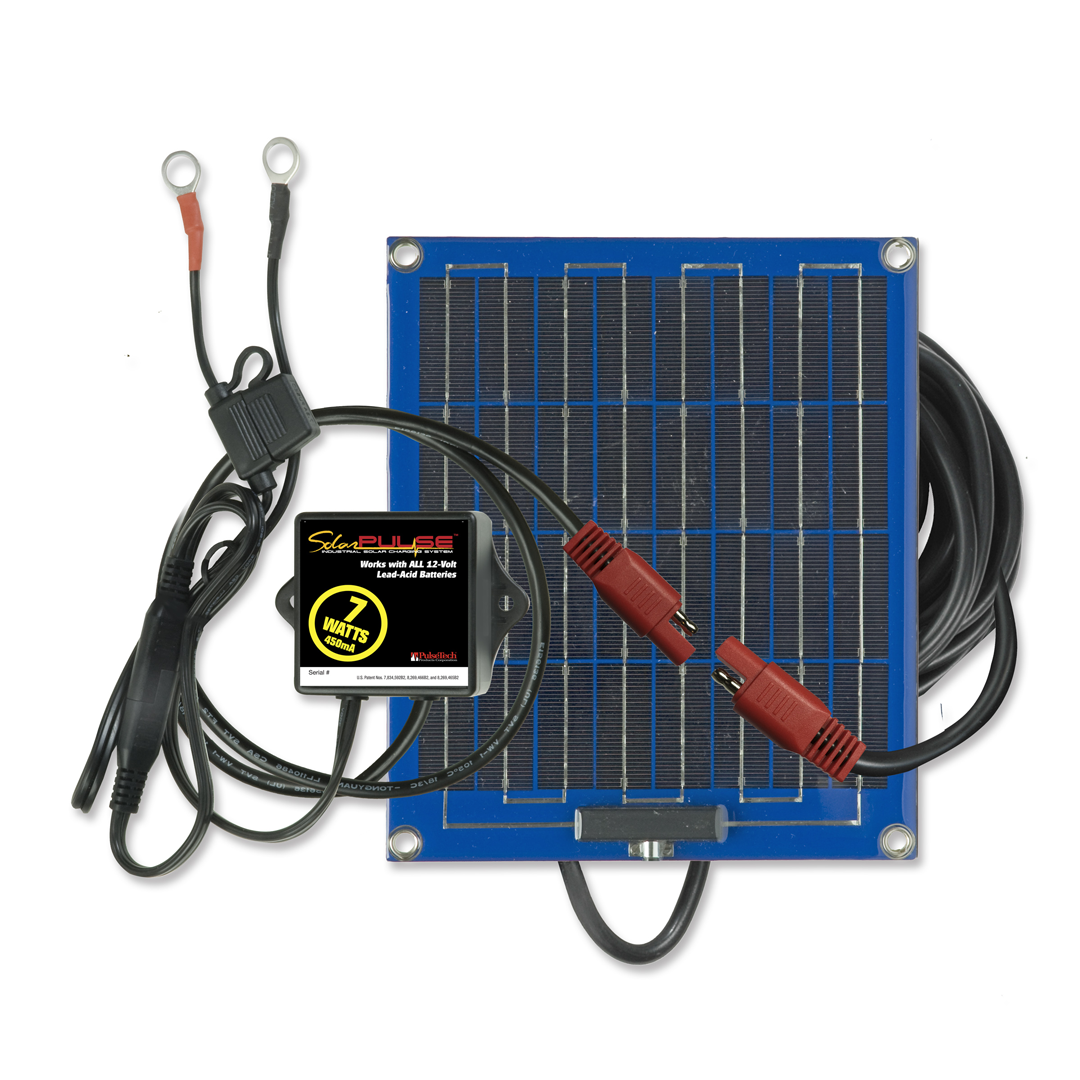

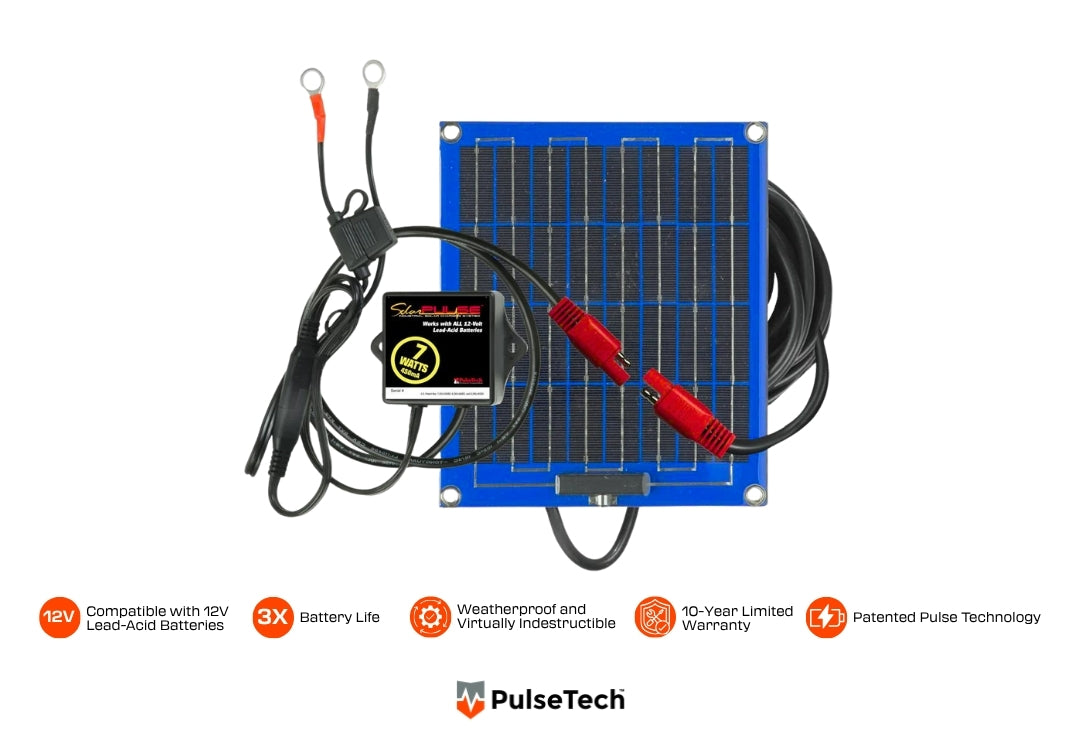

- Packaging includes: Circuit box, 3' box-to-lug wire, and 17' box-to-panel wire

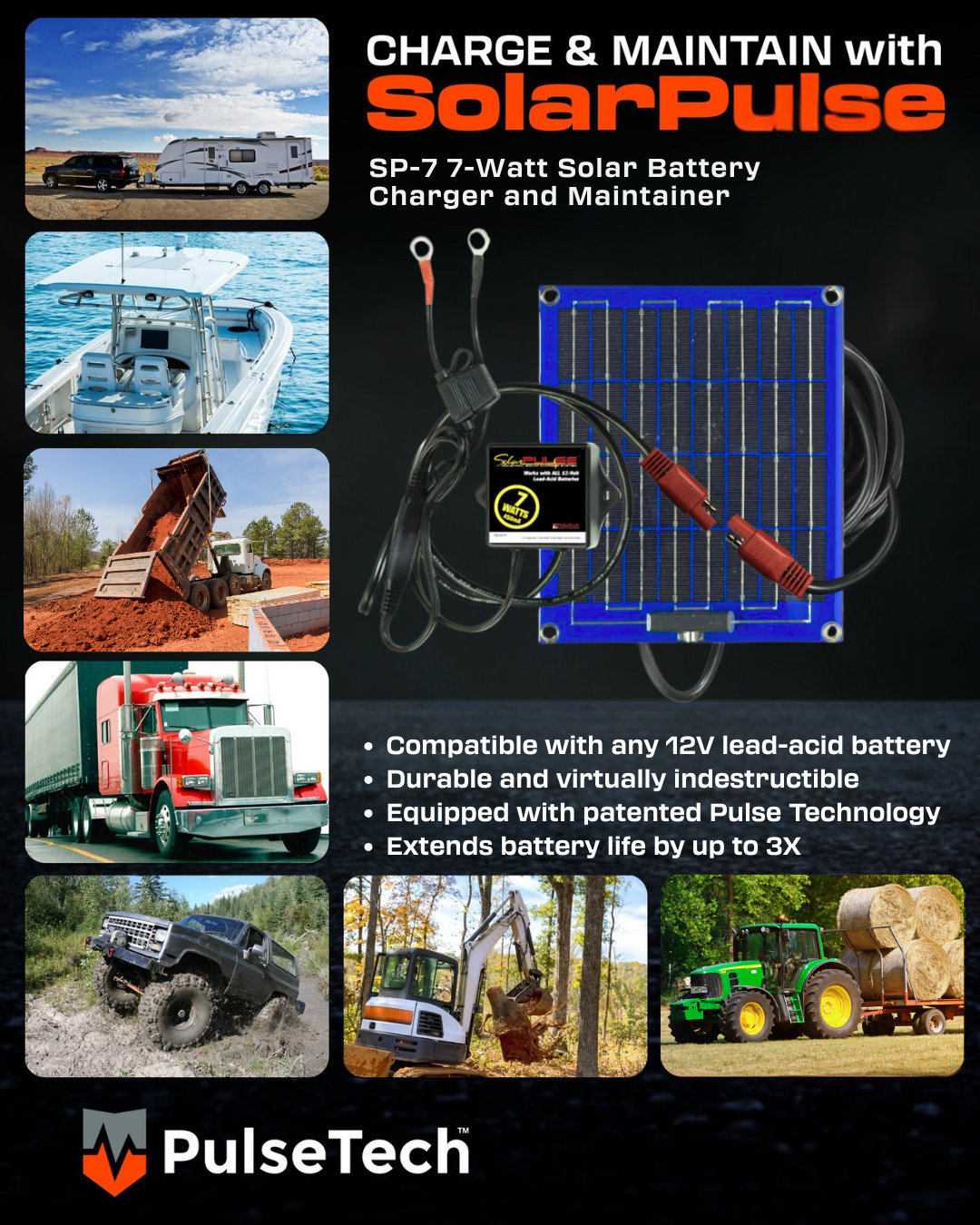

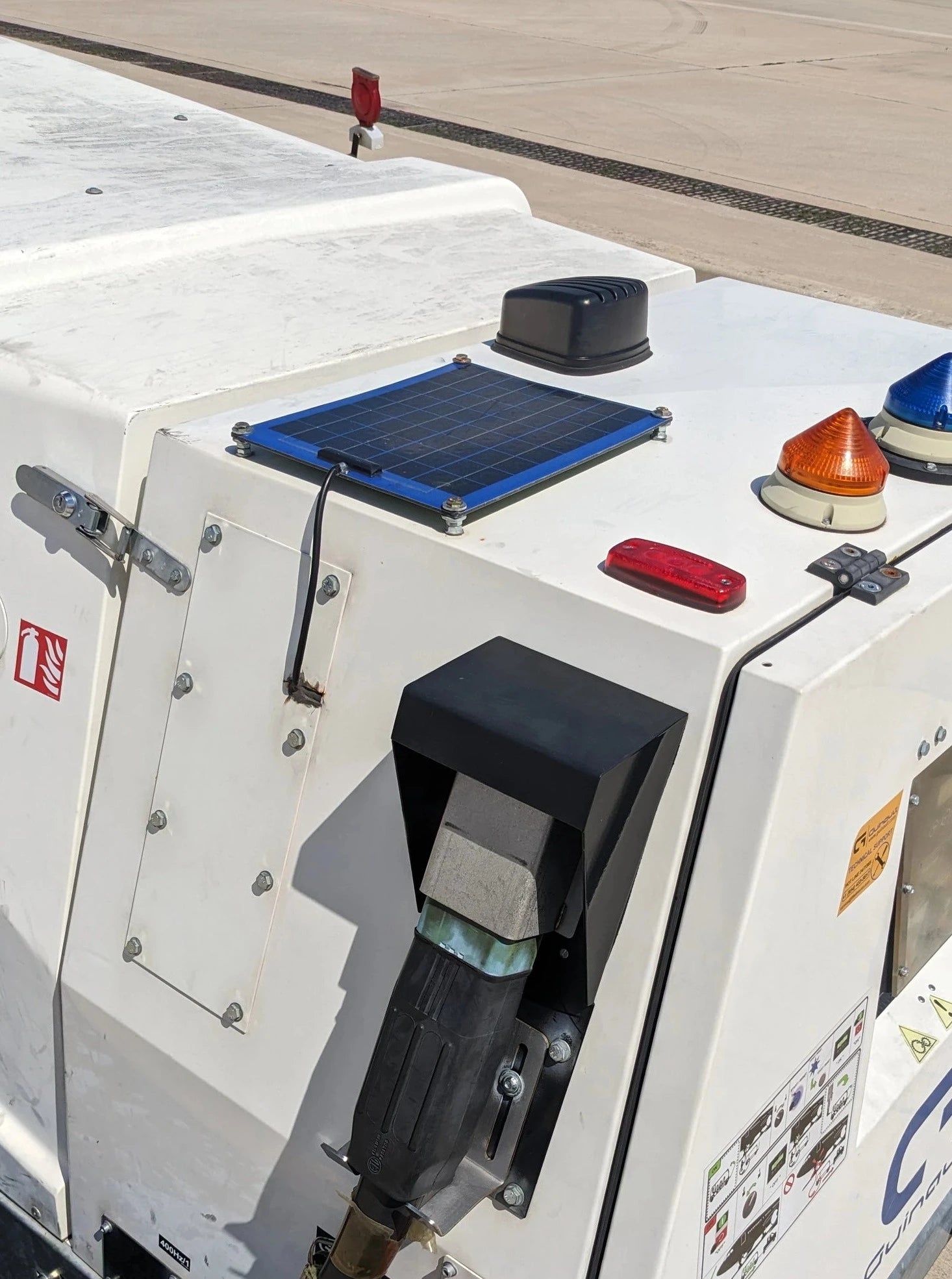

- This solar panel charges and maintains the normal loss of battery power on seldom-used vehicles and equipment stored outdoors, ensuring batteries are maintained indefinitely without the risk of overcharging or overheating.
- Employs Patented Pulse Technology that minimizes lead sulfate crystals on the battery plates, enhancing the performance, extending battery life 3X, and saving you money in the long run
- The design is virtually indestructible and suited for commercial use.
- Compatible with all 12-volt lead-acid batteries, including VRLA, AGM, gel, and flooded cell types.
- Features crystalline silicon photovoltaic cells that maximize solar-to-energy conversion in the smallest possible footprint.
- Warranty: Ten-Year Limited Warranty
Unique Design: SolarPulse utilizes high-quality crystalline silicon cells that offer more power per square inch and a longer lifespan than standard amorphous "thin-film" solar cells. This uniquely designed solar panel comprises highly efficient, proven crystalline silicon photovoltaic cells, encapsulated in a clear polyurethane plastic coating and mounted on a laminated aluminum substrate back plate that is less than 1/4" thick.

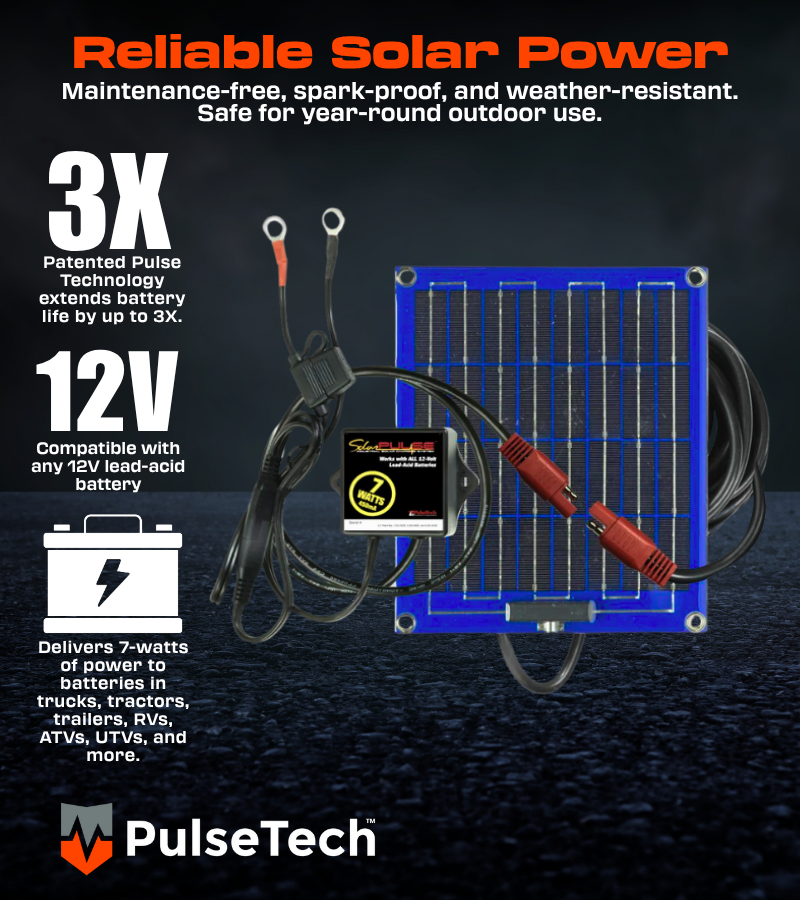

- Works on ANY 12V lead-acid battery including AGM, gel and flooded cell
- Maintains batteries at a full state of charge
- Dramatically reduces jumpstarts

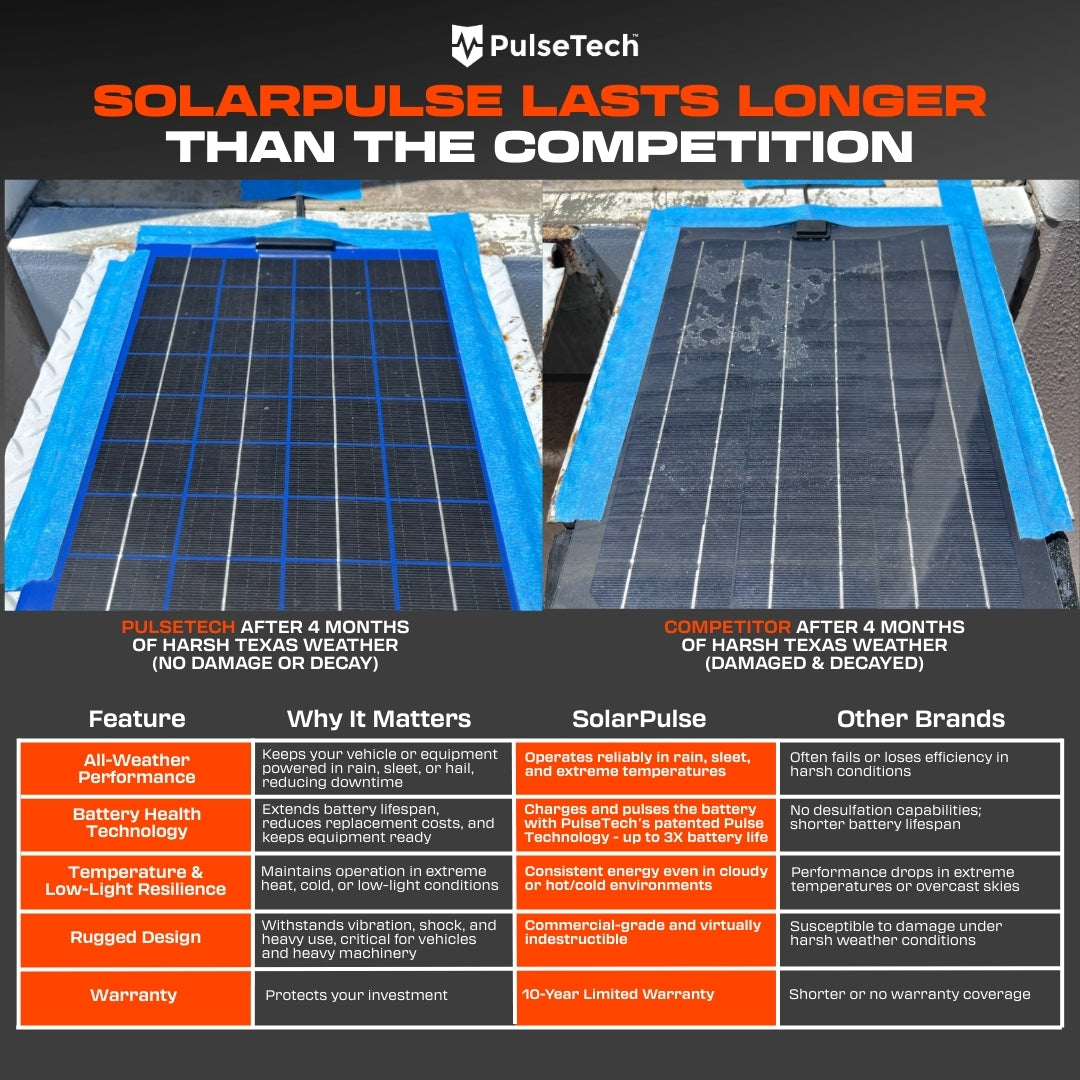

- Commercial grade solar panel is virtually indestructible
- Patented Pulse Technology extends battery life up to 3 times
- Supports sustainability programs
- Reverse polarity protected
- Ten-Year Limited Warranty
Model Name: SolarPulse 12V Solar Charger Maintainer, 7-Watt
Model Number: SP-7
Part Number: 735X467
Input Electrical
Solar Powered
Output Electrical
Output Current: 450 mA
Output Voltage, Bulk Charge: 16.5 V dc
Mechanical/Physical Characteristics
Circuit Box Dimensions: 3.4'' L x 2.4'' W x 1.5'' H
Solar Panel Dimensions: 10.25'' L x 8.85'' W x 0.25'' H
Weight: 2.1lbs
Shipping Weight: 2.65lbs
Box to Lug Wire Length: 3'
Box to Panel Wire Length: 17'
Quick Disconnect Between Solar Panel & Circuit Box
Environmental
Operating Temperature: 0°F to 130°F (-18°C to 54°C)
Storage Temperature: 0°F to 150°F (-18°C to 66°C)
Indicators
LED shines brightly when the solar panel is in full sunlight and fades during partial sunlight
Warranty
10-Year Limited Warranty
HOW WE 3X BATTERY LIFE
The secret to our success is our patented pulse waveform, which removes and prevents the buildup of lead-sulfate deposits on battery plates. That primes the battery to accept and store maximum power.
Long trusted by the military, our tech is ideal for anyone who wants to get more out of their equipment. Whether you're looking for a car battery maintainer or a reliable car battery charger, our technology ensures peak performance and longevity for your vehicle's power source.
The Science of Tripling Battery Life
Founded in 1994, PulseTech is the world leader in recovery, charging, maintenance, and testing of all 12-volt and 24-volt battery systems.
The secret to our success is our patented pulse waveform, which removes and prevents the buildup of lead-sulfate deposits on battery plates. That primes the battery to accept and store maximum power.
For you, this means:
- Peak performance and three times more battery life
- More efficient, resilient, and environmentally responsible equipment
- Freedom, knowing you have the power to go farther and do more.
Long trusted by the military, our tech is ideal for anyone who wants to get more out of their equipment.
